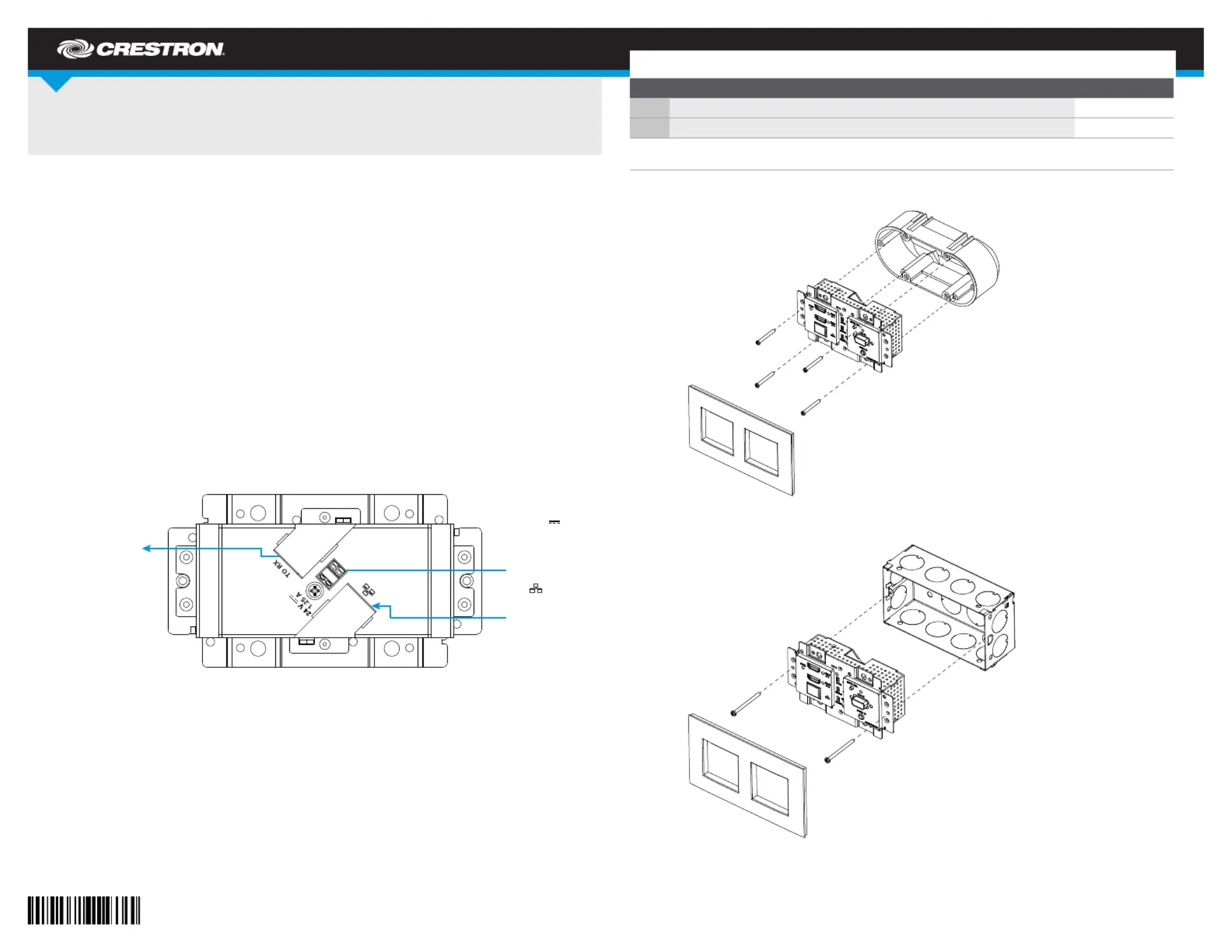

DO GUIDE
HDI-TX-301-C-2G-E
DM Lite Multiformat Switch and Transmitter, International
Installation into a European Electrical Box
Installation into a UK Electrical Box
DO Install the Device
Install the device in a 2-gang European or UK electrical box (not included). A minimum mounting
depth of 45 mm is required.
To install the device:
1. On the rear of the device, make connections to the TO RX and Ethernet ports.
NOTES:
• For the 24 Vdc power connection, connect a power pack to either the transmitter or
a compatible receiver. Do not connect a power pack to both devices simultaneously.
Power is transmitted over the cable that connects the TO RX port on the transmitter to
the FROM RX port on the receiver.
A power pack is not included with the transmitter. When the transmitter is used with a
DM Lite surface-mount receiver, the transmitter receives power from the power pack
that ships with and connects to the receiver.
• Cabling that connects the TO RX port to the FROM TX port is designed for
intrabuilding use only.
Rear View
2. Using a Phillips screwdriver, do either of the following:
• Attach the transmitter to a European electrical box using the four included
M3 x 15 mm Phillips at head screws.
• Attach the transmitter to a UK electrical box using the two included M3.5 x 30 mm
Phillips at head screws.
3. Position a Crestron decorator-style faceplate (sold separately) over the front panel of the
transmitter, and then gently press down on the faceplate until it snaps into place.
DO Check the Box
QTY ITEM PART NUM.
4 Screw, M3 x 15 mm, Flat Head, Phillips* 2052287
2 Screw, M3.5 x 30 mm, Flat Head, Phillips
†
2052288
*For installation into a European electrical box
†
For installation into a UK electrical box
24 G
TO RX:
To FROM TX
link input of
receiver
Passive
pass-through
to front panel
Ethernet port
:
24 V
1.25 A:
From power pack
(not included)
