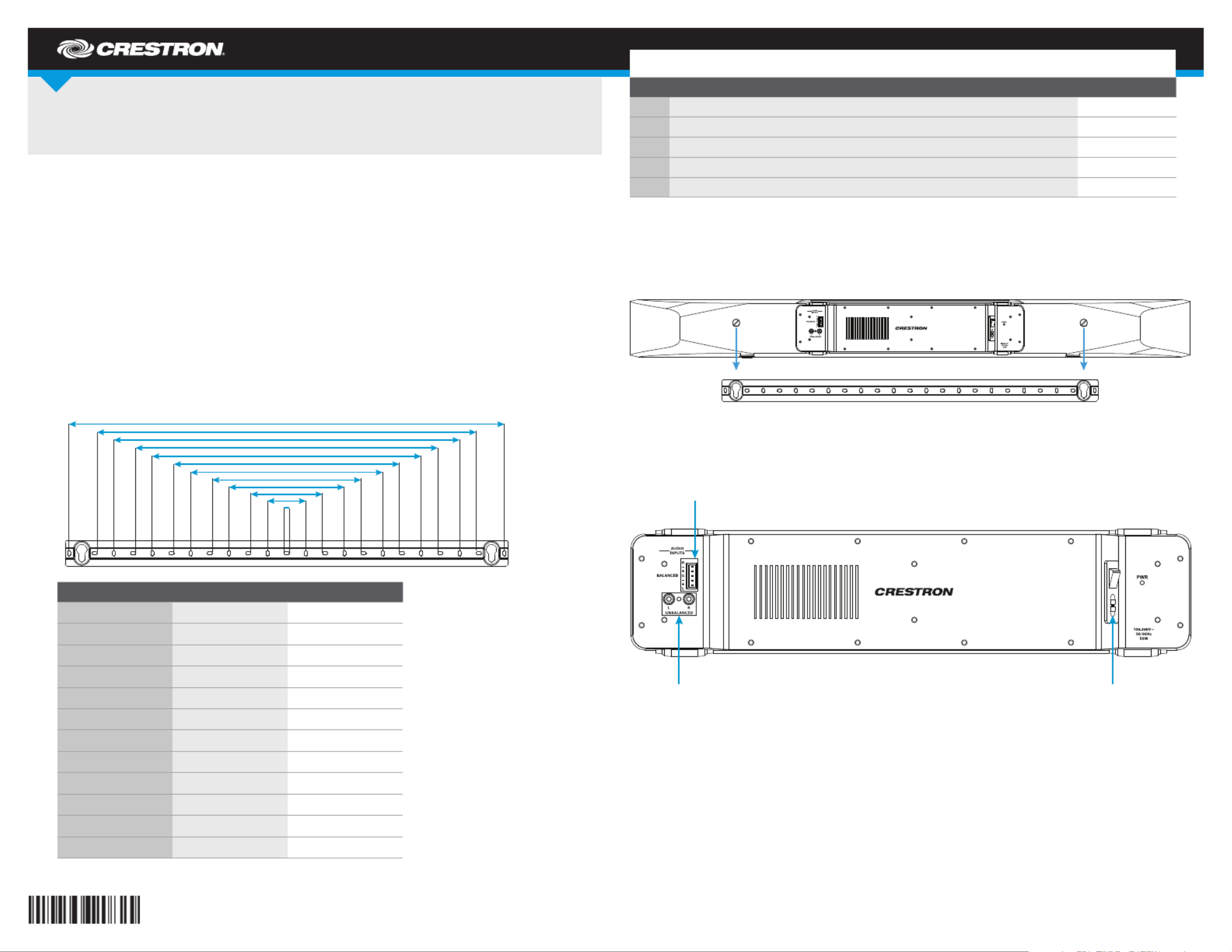

DO GUIDE
3. Install the included thumb screws on the rear of the sound bar.
4. Connect the sound bar as described in “DO Connect the Device.”
5. Place the sound bar against the wall, above the mounting bracket, and lower the sound bar until
the thumb screws rest in the mounting bracket.
DO Connect the Device
Make the necessary connections as called out in the diagram below. Connect power last.
NOTE: Connect only one input.
NOTE: If using the included RCA® cable for connecting the UNBALANCED port, use the right-
angled connectors to allow the cable to t between the wall and the sound bar.
DO Use the Device
Move the switch located above the 100–240V~ 50/60Hz 50W port to turn on the sound bar. The PWR
LED lights, and sound from the connected source is produced.
If an audio signal is not present for approximately 20 minutes, the sound bar switches to a low power
idle state. The sound bar resumes normal operation when an audio signal is detected.
SAROS SB-200-P
Saros® Sound Bar 200, Powered
DO Install the Device
The Saros® Sound Bar can be installed as part of a Crestron RL
® 2 Group Collaboration system or
on a wall as part of any integrated audio system. With the balanced and unbalanced inputs, the
sound bar can work with any audio system.
In a Crestron RL System
Use the included thumb screws to attach the sound bar to the sound bar bracket. Refer to the
quickstart included with the Crestron RL Group Collaboration system for details.
On a Wall
1. Place the mounting bracket on the wall.
NOTE: Use a laser level or snap a chalk line to mark the location of the bracket.
2. Secure the bracket to the wall with hardware that is appropriate for the mounting surface.
NOTE: If a stud cannot be located, use the screwholes located adjacent to each keyhole slot.
DO Check the Box
QTY PRODUCT COLOR PART NUM.
1 Bracket, Mounting 2048193
1 Cable, RCA®, Right-Angle, 6' (1.83 m) Black 2047013
1 Connector, 5-Pin 2047025
1 Power Cord, 6' (1.83 m) Black 2047024
2 Screw, 6-32, Thumb 2047009
DIMENSION INCHES MILLIMETERS
A 26.8 680
B 23.3 592
C 21.3 540
D 18.6 472
E 42016.5
F 13.9 352
G 11.8 300
H 9.1 232
I 7.1 180
J 4.4 112
K 2.4 60
L 80.3
A
BCDEFGHIJKL
BALANCED AUDIO INPUT:
From balanced audio source
UNBALANCED AUDIO INPUT:
From unbalanced audio source
100–240V~ 50/60Hz 50W:
From ac power outlet
