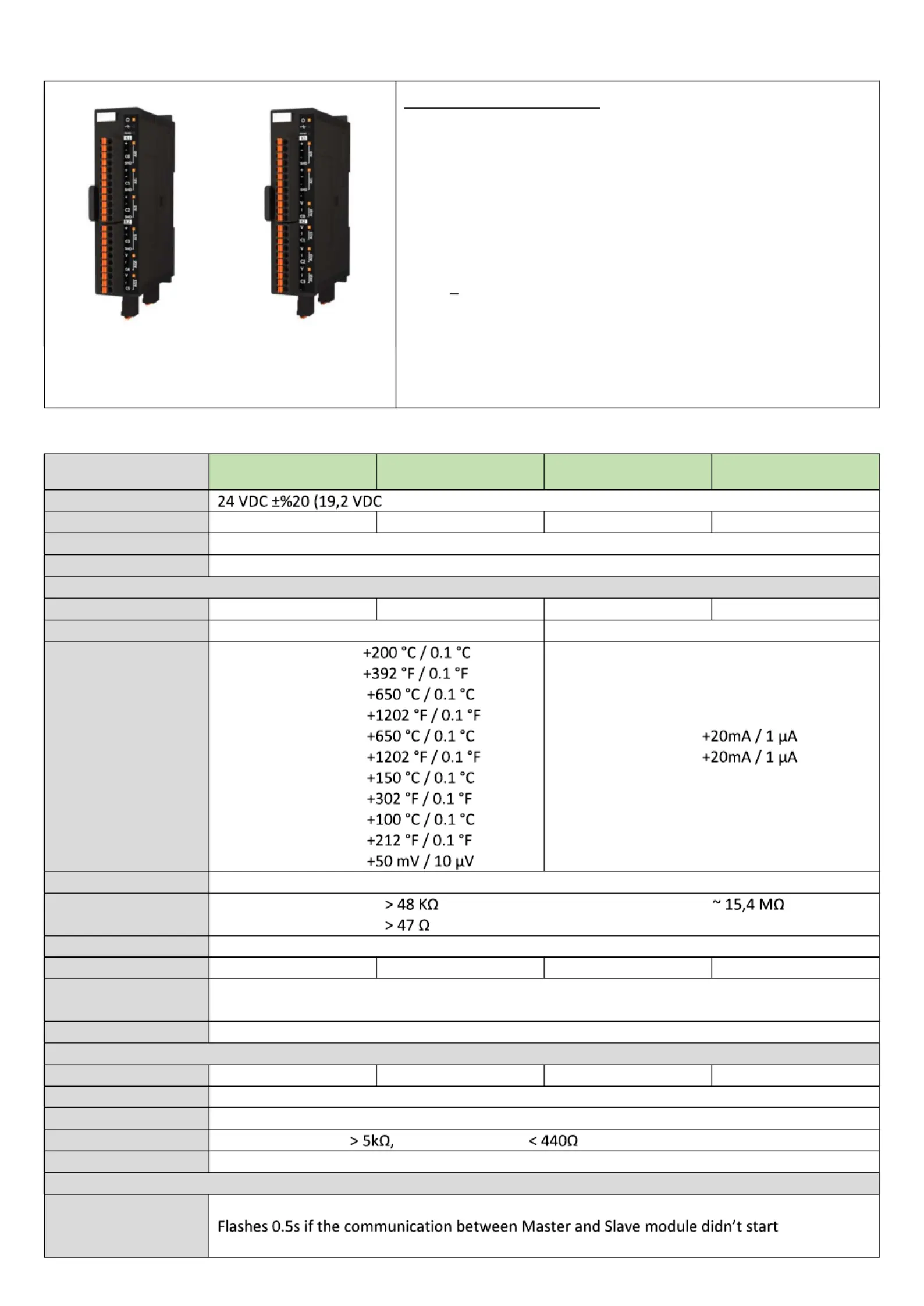

Pagina 1/5
11 ENG IPERTU-SMRXXX 02 V01_0824
Semi Universal Analog Input & Analog Output Extension Modules
General Specicaons :
* Modules have 2 or 4 input channels according to module type
* Analog input types (each analog
input can be set in different type
individually) :
- Cu-50, PT100, PT1000, PTC, NTC, mV or
- V, mA
* ON/OFF kontrol, PID kontrol, AutoTune, SelfTune
* According to module type; 4 or 2 analog output (V/mA)
* Modbus RTU communicaon protocol with RS485
* USB Device (For device conguration)
* Modular connecon (up to 16 modules including itself)
* Led indicators:
- Power Supply, USB, RS-485
- Analog Input error led indicators
- Acve Output led indicators
SMR1P1-00-01-00-01_1
SMR1P1-00-03-00-03_1
SMR1P1-00-20-00-01_1
SMR1P1-00-21-00-03_1
Technical Specicaons
Module Type SMR1P1-00-01-00-01 SMR1P1-00-03-00-03 SMR1P1-00-20-00-01 SMR1P1-00-21-00-03
Supply Voltage - 28,8 VDC)
Power Consumpon 3W 4W 3W 4W
Communicaon RS-485 Modbus RTU
USB Device Mini USB, USB 2.0
Analog Inputs
Number of Inputs 4 2 4 2
Input Sensor Type Cu-50, PT-100, PT-1000, PTC, NTC, mV V, mA
Measurement Range
/ Resoluon
Cu-50 -200 ....
-328 ....
PT-100 -200 ...
-328 ...
PT-1000 -200 ...
-328 ...
PTC -50 .....
-58 .....
NTC -50 .....
-58 .....
mV 0 .........
V 0 ......... +2V / 1 mV
0 ......... +5V / 1 mV
0 ......... +10V / 1 mV
2 ......... +10V / 1 mV
mA 0 .........
4 .........
ADC resoluon 15 bit
Input Impedance
Voltage type inputs Other type inputs
mA type inputs
Overall accuracy % 0.2 (full scale)
Response me Per channel
300msec
150 msec 150 msec 150 msec
Average function
The aritmec average of the last read measurements according to the specied average
number of samples
Fault detecons 1- short circuit, 2- sensor break, 3- over range
Analog Outputs
Number of Outputs 2 x V / mA 4 x V / mA 2 x V / mA 4 x V / mA
Output range 0-10V or 0-20mA (only one tpe can be selected in the same me)
Overall accuracy % 0.5 (in the full scale measurement range)
Output Resistance For voltage output for current output
Response me ~200 msec
Led Indicators
Power
Always ON if the power input is in working limits, ashes 0.1s when undervoltage detected
Flashes 1s if the communicaon between Master and Slave module broken
