INSTRUCTIONS FOR INSTALLING INTERMATIC ALL-PLASTIC
RAINPROOF TIME SWITCH ENCLOSURE
INSTALLATION OF CASE
1. Select position on wall or other surface where case is to be mounted.
2. Drill into mounting surface and drive screws into holes. Use anchors if nec-
essary. Use charge activated stud driver with care and according to manu-
facturer’s instructions.
CONDUIT CONNECTIONS
1. Remove desired center knockouts by placing screwdriver into slot provided,
then pound on handle of screwdriver by hand or hammer. Remove loose
slug with pliers.
2. Remove outer ring, if required, by placing screwdriver in groove and punch
inward in three places. Remove ring with pliers. Smooth edges with round file
or knife if necessary.
3. Attach conduit connector first to the conduit, then secure the conduit con-
nector into the desired knockout hole by using the connector locknut. In
order to prevent enclosure damage, the conduit should be aligned and sup-
ported so as to prevent unnecessary stress on the enclosure walls.
IMPORTANT: Metallic conduits must also have proper size grounding bush-
ings installed. See grounding instructions below. Use any
approved bushings or order 156T3917A (two 1/2” size), or
156T3918A (two 3/4” size) grounding bushing kit direct from
Intermatic Inc..
GROUNDING
National Electric Code requires that all grounding conductors, metallic con-
duits and grounding terminals in the enclosure must be in good electrical
contact with each other. Also, the removal of one such item must not interrupt
the grounding continuity of the others. The minimum size copper equipment
grounding conductors must be #14 AWG, if the fuse or breaker protecting the
circuit is 15 amperes, #12 AWG if 20 amp, and #10 AWG if 30 amp or 40 amp.

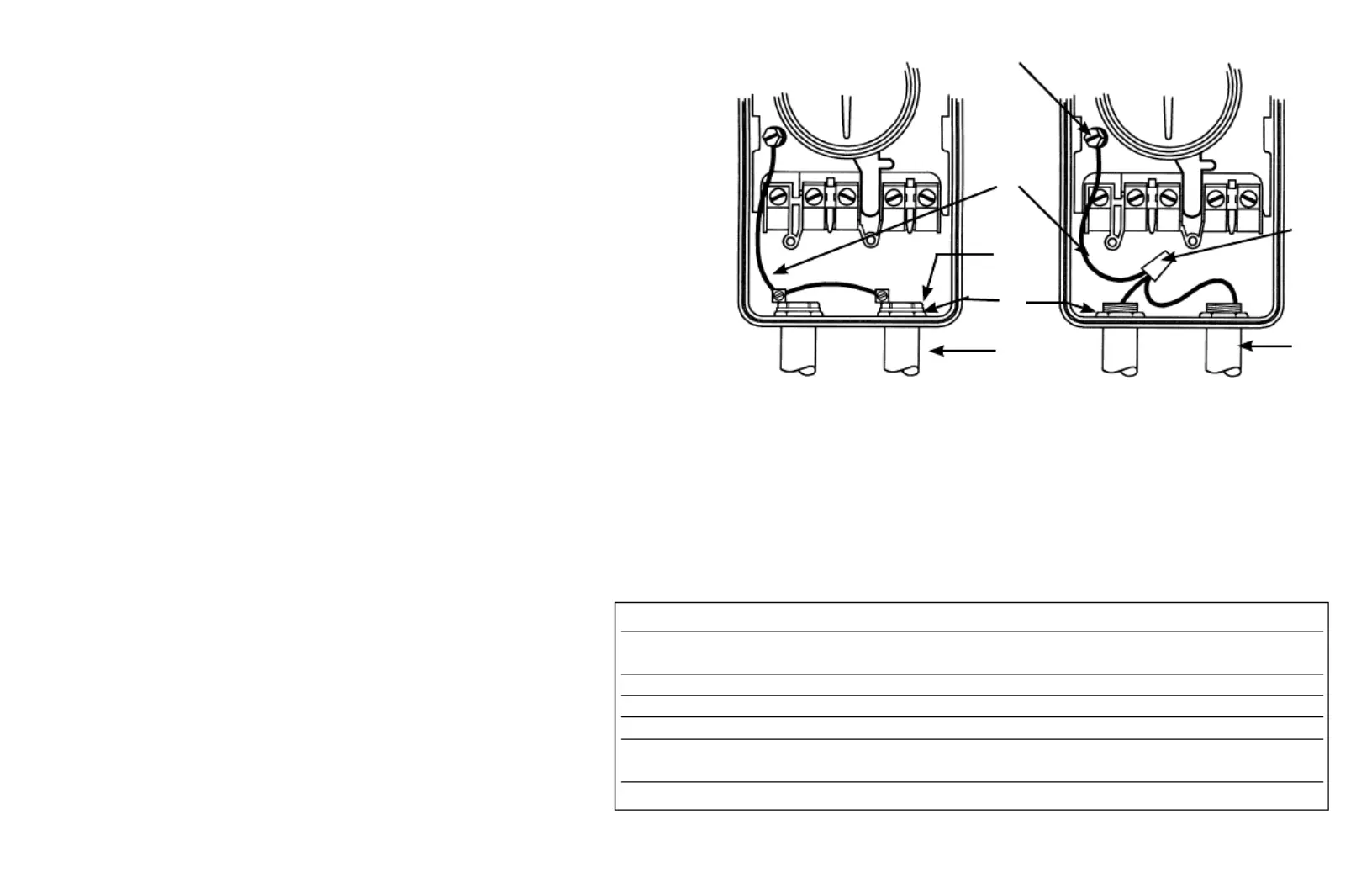

See illustration below for proper grounding of different wiring systems
METALLIC RIGID OR
FLEXIBLE CONDUIT
CONDUCTO
METALICO RIGIDO
O FLEXIBLE
CONDUIT MÉTALLIQUE
RIGIDE OU FLEXIBLE
NON-METALLIC CONDUIT
OR SHEATHED CABLE
CONDUCTO
NO-METALICO O CABLE
FORRADO
CÂBLE GAINÉ OU CONDUIT
NON-MÉTALLIQUE
A
B
C
D
E
G
F
A Grounding screw Tornillo para puesta a tierra Vis de mise à la terre
B Grounding conductor Conductor para puesta a tierra Conducteur de mise à
la terre
C Grounding bushing Manguito para puesta a tierrar Traversée de mise à la terre
D Connector locknut Contratuerca del conector Frein d’écrou de connexion
E Metal conduit Conducto metálico Conduit métallique
F Plastic conduit Conducto de plástico Conduit de plastique
or Romex conductor o conductor Romex ou conducteur Romex
G Twist on wire connector Tuerca empalmadora Écrou de fils
