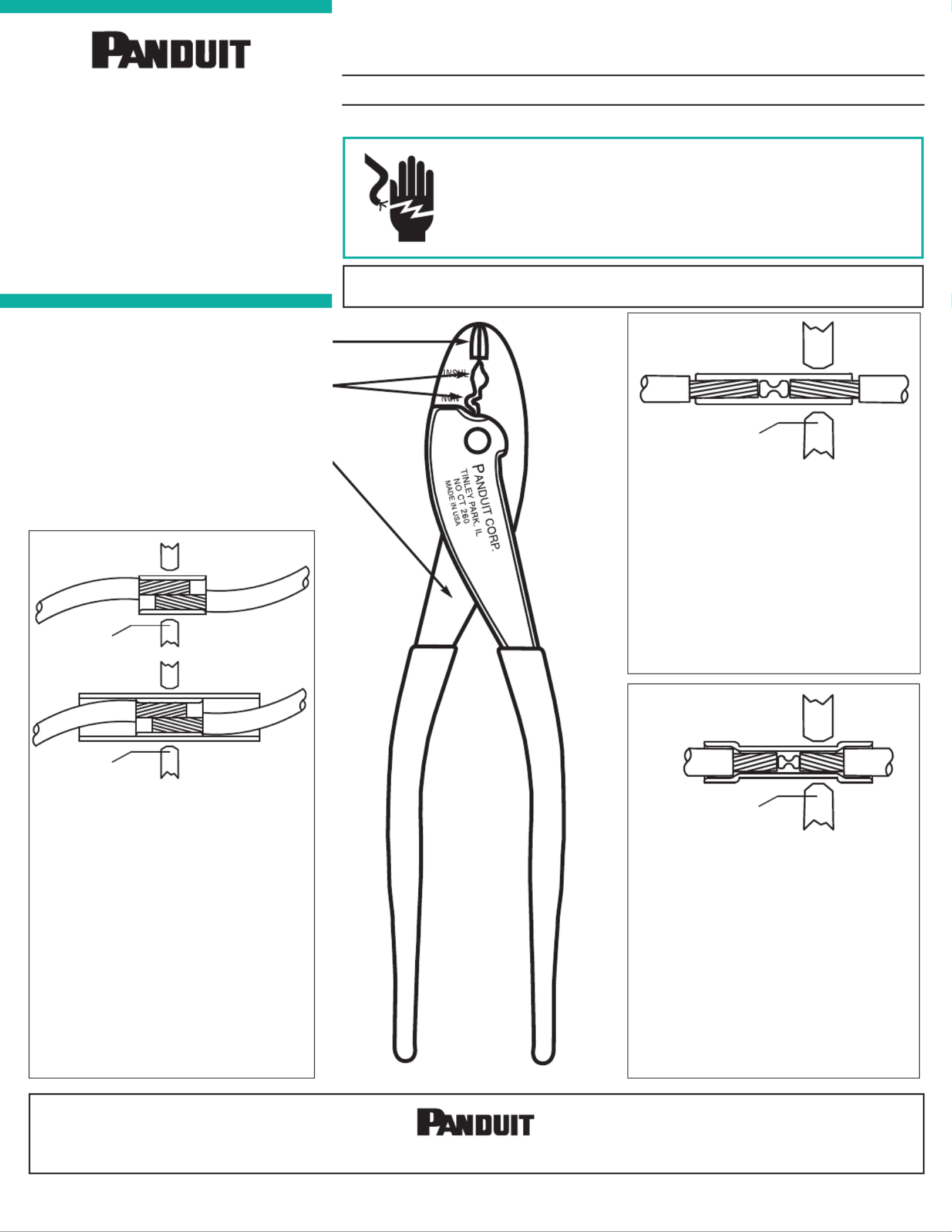

CT-260
CRIMPING TOOL
OPERATION INSTRUCTIONS
Page: 1 of 2
PA24429A01
REV.: 03 6-2018
OPERATION INSTRUCTIONS
© Panduit Corp. 2018
CT-260
Technical Support:
1-800-777-3300
E-mail:
techsupport@panduit.com
See product packaging or contact Customer Service for
UL/CSA approved tooling/product combination.
CAUTION:
Verify power is “OFF” before working on wiring with this tool.
The plastic grips are for the user’s comfort,
and are not intended to insulate against electrical shock
while working on live electrical circuits.
NON-INSULATED AND INSULATED
PARALLEL SPLICE
INSTRUCTIONS
1. Insert stripped wire into each end of the
parallel splice. (See product packaging
for proper strip lengths.)
2. Locate parallel splice in proper crimp
pocket.
3. Position crimp pocket on the center of
the metal barrel.
4. Squeeze handles firmly.
WIRE CUTTER for No. 10 AWG and
smaller copper wire.
CRIMP POCKETS for Pan-Term
insulated and non-insulated terminals,
disconnects, wire joints and splices on No.
22 to 10 AWG solid or stranded wire.
This tool is made of hardened steel and is
protected with a light coat of oil.
CRIMP POCKET
CRIMP POCKET
NON-INSULATED
INSULATED
www.panduit.com
NON-INSULATED BUTT SPLICE
INSTRUCTIONS
1. Insert stripped wire into end of the butt
splice to internal wire stop. (See product
packaging for proper strip lengths.)
2. Locate butt splice in proper non-
insulated crimp pocket.
3. Position crimp pocket on the center of
the metal barrel half with wire inserted.
4. Squeeze handles firmly.
5. Repeat for other end of butt splice.
INSULATED BUTT SPLICE
INSTRUCTIONS
1. Insert stripped wire into end of the butt
splice to internal wire stop. (See product
packaging for proper strip lengths.)
2. Locate butt splice in proper insulated
crimp pocket.
3. Position crimp pocket on the center of
the metal barrel half with wire inserted.
4. Squeeze handles firmly.
5. Close insulation if desired.
6. Repeat for other end of butt splice.
CRIMP POCKET
CRIMP POCKET
