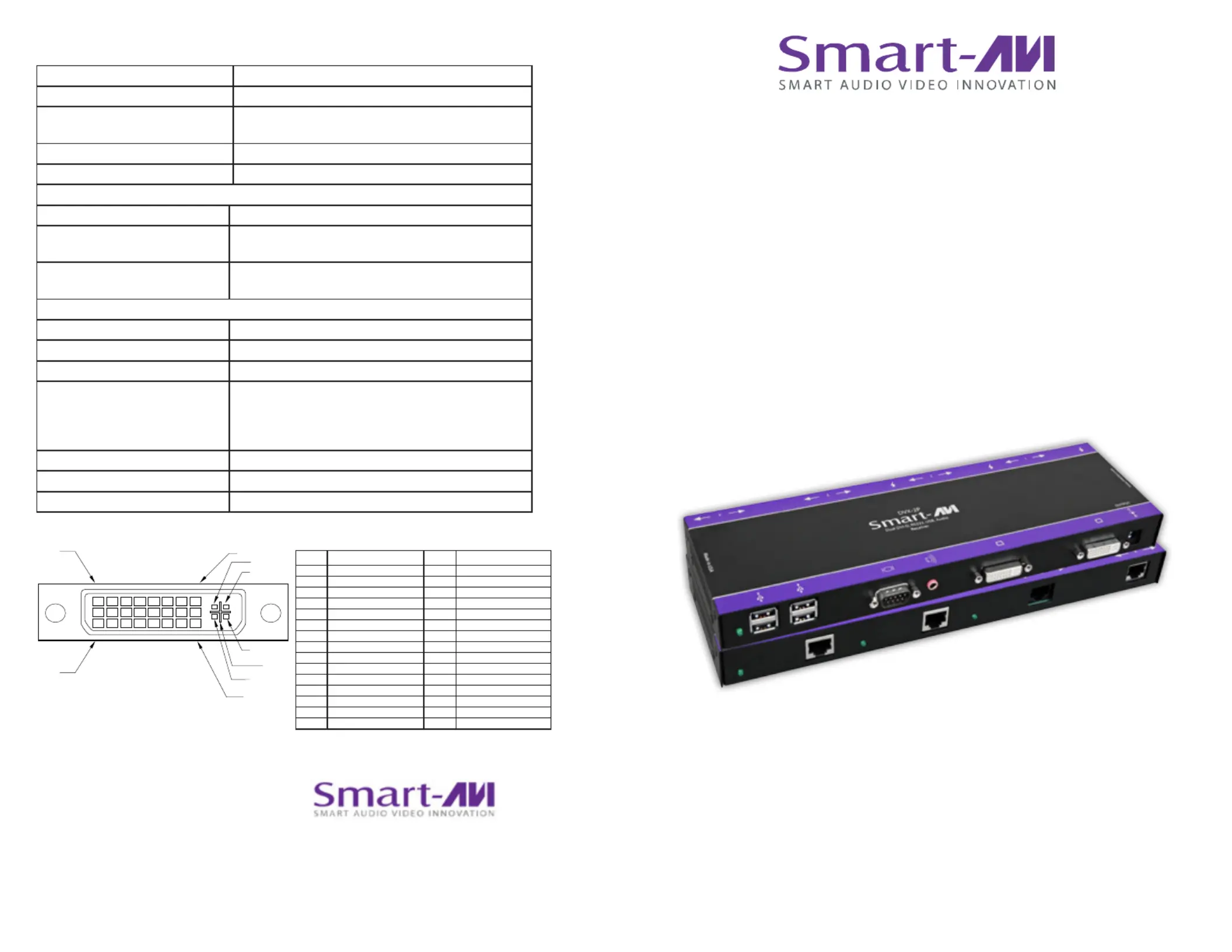

User Manual
DVX-2P
Extend 2 DVI-D, RS232, Stero Audio and USB1.1
m_dvx2p_101209
Specifications
PIN 17
PIN 1
PIN 24
PIN 8
C 4
C 1
C 2
C 5
C 3
#niP langiS #niP langiS
1 -2ataDS.D.M. 6T 1 tceteDgulPtoH
2 +2ataDS.D.M. 7T 1 -0ataDS.D.M.T
d3 leihS4/2ataDS.D.M. 8T 1 +0ataDS.D.M.T
4 -4ataDS.D.M. 9T d1 leihS5/0ataDS.D.M.T
5 +4ataDS.D.M. 0T 2 -5ataDS.D.M.T
6 kcolCCD 1D 2 +5ataDS.D.M.T
7 ataDCD 2D d2 leihSkcolCS.D.M.T
8 cnyS.treVgolan 3A 2 +kcolCS.D.M.T
9 -1ataDS.D.
M. 4T 2 -kcolCS.D.M.T
01 +1ataDS.D.M.T
1 d1 leihS3/1ataDS.D.M. 1T C deRgolanA
21 -3ataDS.D.M. 2T C neerGgolanA
31 +3ataDS.D.M. 3T C eulBgolanA
41
4C cnySzroHgolanA
51 DN 5G C dnuorGgolanA
5VDC 1.6A
DVI
Video Interface DVI-D
Resolution 1920 x 1200@60Hz, Resolution up to 1280 x
1024 min. 75Hz
Input Interface DVI-D (Single-Link)
Upgradeable Onboard Flash
USB
CAT6 (STP) Maximum Range 220ft
USB Data Data Rate of 12Mbps
Compatable with USB version 1.1
USB Connectors USB-TX-DVX-2P, Type A
USB-TX-DVX-2P, Type B
RS232 and Audio
RS232 (TX-DB9Female) (RX-DB9Male)
CAT6 STP CAT6
Protocol Full duplex, transparent to all baud rate
Audio Signal Type Stero Audio
Bandwidth 15MHz.0db
Impedance 100 Ohm
Connector 3.5 mini jack,
Power 110/120V - 5VDC - 5A
Dimension (inches) 10.81” (L) x 3.38” (W) x 1.06” (H)
Weight (lbs) 2lb
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced
or translated into another language without prior written
consent from Smart-AVI.
For more information, visit www.smartavi.com.
