© Copyright 2008 Smart-AVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties
of merchantability and fitness for any particular
purpose.
Smart-AVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced or translated into another language
with
out prior written consent from Smart-AVI.
For the complete manual, visit www.smartavi.com.

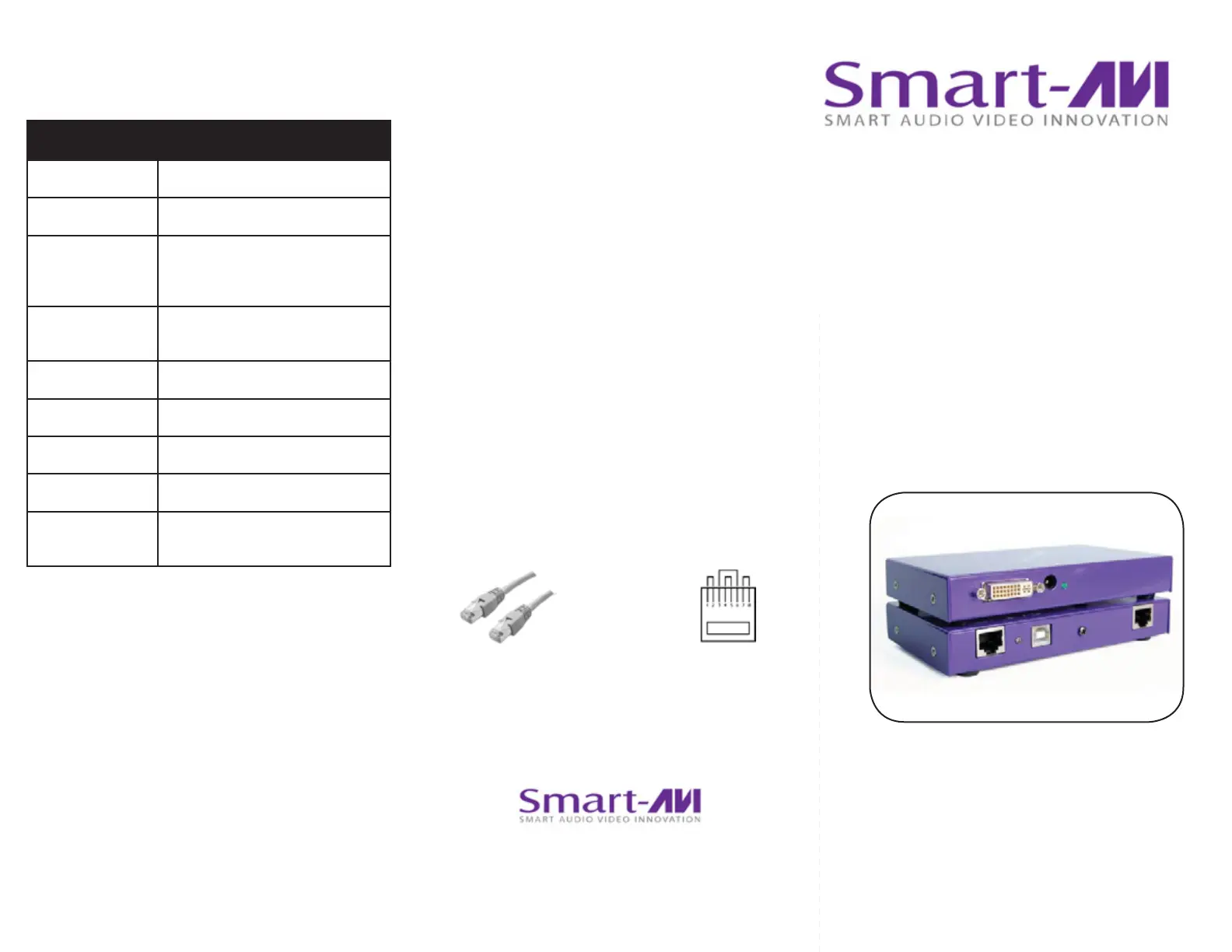

DVI-D and USB extension
via Twisted Pair
DVX Plus
www.smartavi.com
User Manual
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020
Technical Specifications
DVX PLUS SPECIFICATIONS
Video Interface Single Link Range
Video Data Rate 1.65 Gbps
Resolution
1920 x 1200 @ 60 Hz, Reso
lution up to 1280 x 1024
min. 75H
Power Supply
Universal Switch mode PSU
(90-240V Input) 5VDC 1A
Input Interface DVI-D
USB Data
USB max data rate 12Mbps
USB compatibility 1.0 and 1.1
Connector Type
Type A (Transmitter)
Type B (Receiver)
© Copyright 2012 Smart-AVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or
for incidental or consequential damages in connection
with the furnishing, performance or use of this material.
No part of this document may be photocopied,
reproduced or translated into another language without
prior written consent from Smart-AVI.
For more information, visit www.smartavi.com.
www.smartavi.com
Installation
Manual
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St., North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
The following is the wiring standard for terminating UTP/STP
cable using RJ-45 connector:
Connectors: RJ-45
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
DVX PLUS SPECIFICATIONS
Video Interface Single Link Range
Video Data Rate 1.65 Gbps
Resolution
1920 x 1200 @ 60 Hz, Reso
lution up to 1280 x 1024
min. 75H
Power Supply
Universal Switch mode PSU
(90-240V Input) 5VDC 4A
Input Interface DVI-D
USB Data
USB max data rate 12Mbps
USB compatibility 1.0 and 1.1
Connector Type
Type A (Transmitter)
Type B (Receiver)
Technical Specifications
Probleemoplossing Smart-AVI DVX-PLUS
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Black, Blue |
| Ondersteunde video-modi: | 1080i, 1080p, 480p, 720i, 720p |
| Maximum resolutie: | 1920 x 1200 Pixels |
| Aansluiting voor netstroomadapter: | Ja |
| Externe adapter: | Ja |
| DVI input ports: | 1 |
| Afmetingen (B x D x H): | 140 x 89 x 25.4 mm |
| Bandbreedte: | 1.65 Gbit/s |
| RJ-45 invoer ports: | 2 |
| Operating voltage: | 5 V |
| Ondersteundende kabel types: | Cat6 |
