The FDX-AV consists of a transmitter and
receiver that extend DVI-D, audio and RS-
232 signals up to 1,400 feet over a single
multimode ber optic cable.
FDX-AV
DVI-D Video, Stereo Audio, and RS-
232 Extender over Fiber Optic Cable
www.smartavi.com
Installation
Manual
What’s in the Box?
PART NO. QTY DESCRIPTION
FDX-TXAV 1 FDX-AV Transmitter Unit - DVI-D, Stereo
Audio and RS-232 Extender over Fiber Op-
tic Cable
FDX-RXAV 1 FDX-AV Receiver Unit - DVI-D, Stereo Au-
dio and RS-232 Extender over Fiber Optic
Cable
Power Supply 2 PS5VDC4A
Technical Specications
VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (1) DVI-D 29-pin female
Output Interface (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC Internal
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Frequency Response 20 Hz to 20 KHz
Impedance 600 ohm
Nominal Level 0-1.0 V
Common Mode Rejection at 60dB
Input Interface (1) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
OTHER
Power External 100-240 VAC/5VDC4A @20W
Dimensions 4.5”W x 5.375”H x 1.75”D
Weight 1 lb.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
RS-232 Data up to 115,000 bps

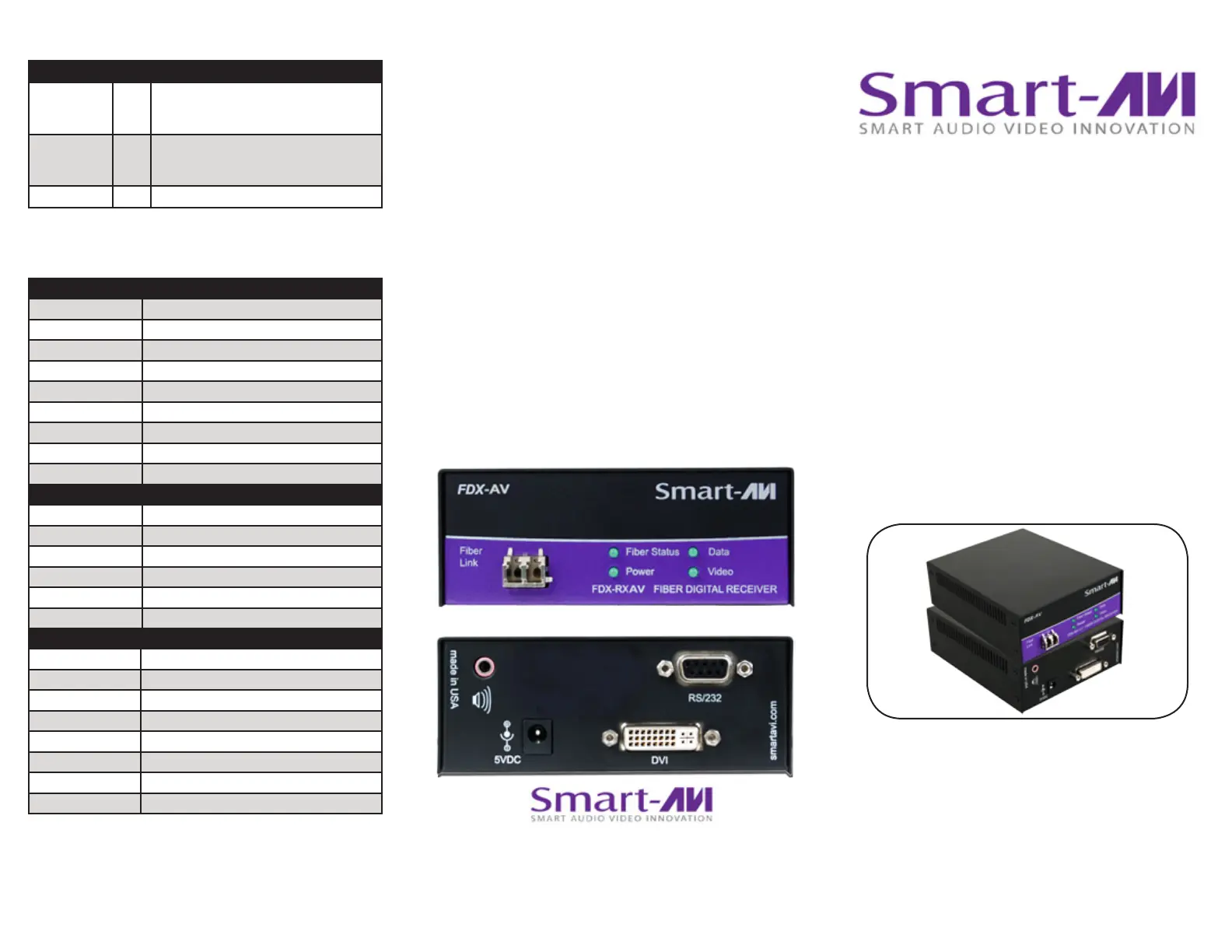

FDX-AV Receiver Front
FDX-AV Receiver Rear
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
