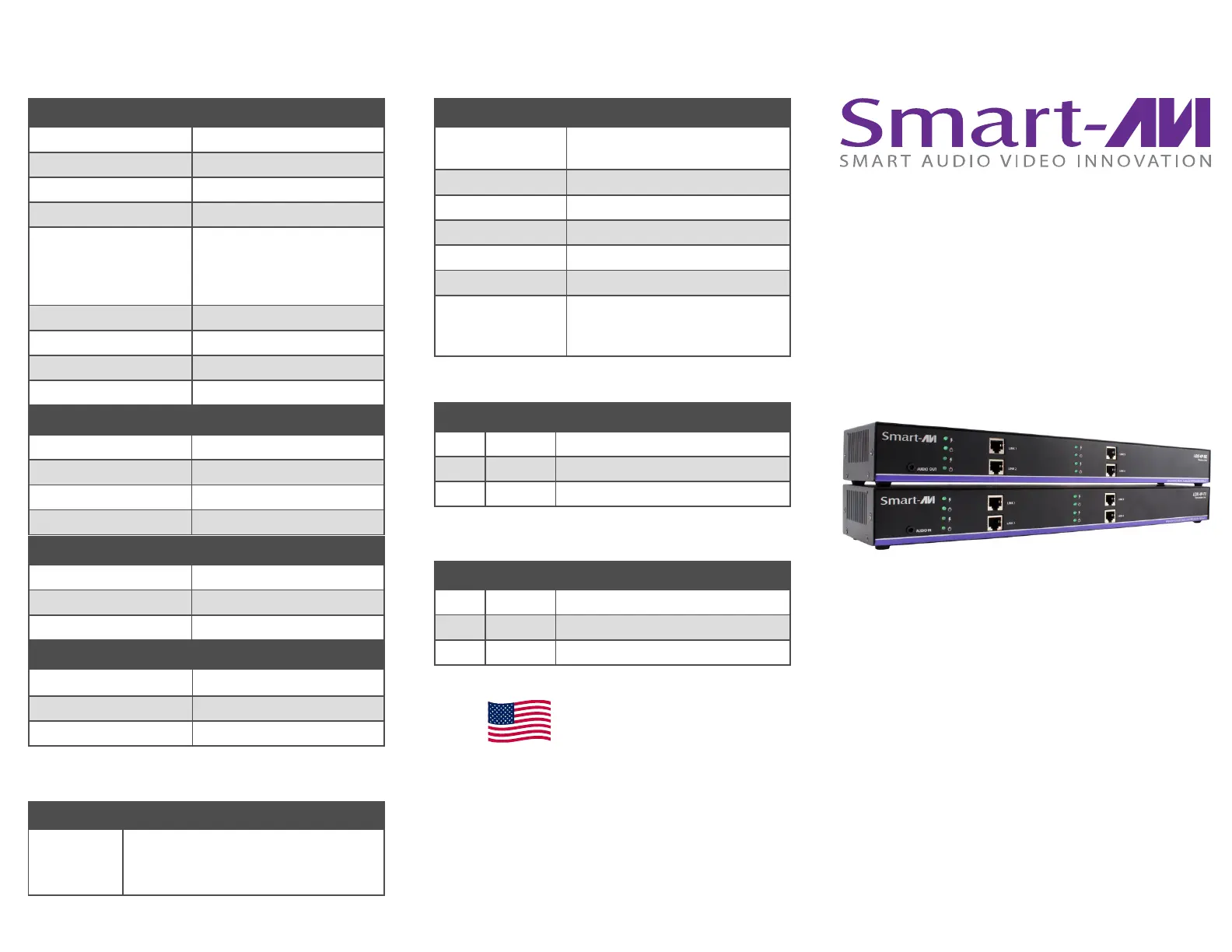

USER MANUAL
LDX-4P
Quad-Head DVI-D, USB Keyboard, Mouse
and Audio Extender Over Cat5e/6
TECHNICAL SPECIFICATIONS
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and
Manufactured in the USA
EXTEND QUAD DVI-D, DUAL RS232, USB KEY-
BOARD, MOUSE AND AUDIO UP TO 245 FEET OVER
DUAL CAT5/5E/6 CABLE
VIDEO
Format (4) DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (4) DVI-D 29-pin (Female)
Output Interface (RX) (4) DVI-D 29-pin (Female)
Resolution Up to 1920 x 1200 @ 60Hz
and
Up to 4K/2K (3840x2160)
@ 30Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
RS232
Input Interface (2) DB9 (Female)
Output Interface (2) DB9 (Male)
Control Up to 115 Kbps
OTHER
Power External 100-240 VAC/5VDC3A
@15W
Dimensions 5.125 in W x 1 in H x 3.625 in D
Weight 1 lb.
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
Max Resolution
Video Extension
Distance
245 ft. w/ CAT6 STP
USB
Signal Type USB 1.1
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (2) USB Type A (Female)
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 100 Ohm
Connector 3.5 mini jack, Female
AUDIO
PIN Name
2 TxD
3
RxD
5 GND
Description
Transmit Data on DB9 Female
Receive Data on DB9 Female
Ground
PIN Name
2 RxD
3
TxD
5 GND
Description
Receive Data on DB9 Female
Transmit Data on DB9 Female
Ground
RECEIVE ON DB9 FEMALE
TRANSMIT ON DB9 FEMALE
WHAT’S IN THE BOX?
PART NO. DESCRIPTION
LDX-4PS Quad DVI-D, USB, Dual RS-232, and
Audio Extender. Includes: [LDX-4P-TX,
LDX-4P-RX, 2x (PS5VDC3A)]
