Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: December 17, 2018 11:00 AM

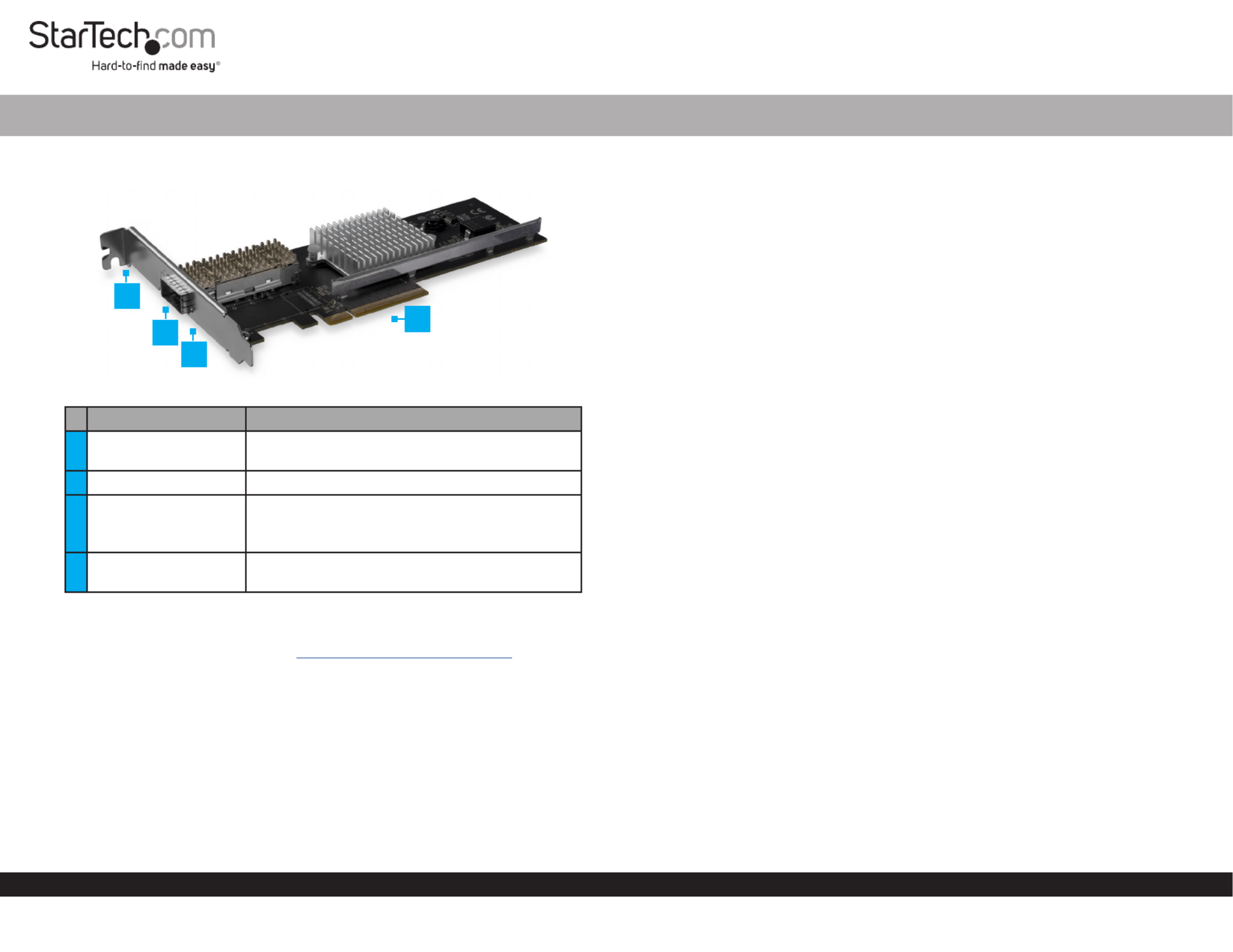

Product Diagram (PEX40GQSFPI)
Port Function
1Mounting Bracket • Used to mount the in a full-Network Card
prole computer system.
2QSFP+Slot • Used to connect a .Network Device
3Link LED/Activity LED
• The is connected Solid Green: Network Card
to a Network.
• Indicates activity.Flashing:
4PCIe p1-x8 Connector • Used to connect the to a Network Card
Computer.
Requirements
For the latest requirements, please visit .www.startech.com/PEX40GQSFPI
• PCI Express® Enabled Computer with an PCI Express Slot (x 8 or x 16)
• One 40G QSFP+ Transceiver Module (sold separately)
• Module or Direct Attach Cable (sold separately)
• Operating Systems:
• Windows® 10, 8.1, 8, and 7
• Windows Server® 2016, 2008 R2, 2012
• Linux® Kernel 2.6.32 to 4.1.1. (64-bit) LTS Versionsx
• Phillips Head Screwdriver
1-Port QSFP+ Server Network Card | PCIe
(Optional) Installing the Low Prole Bracket
To mount the Network Card in a low-prole computer system, replace the pre-installed
Full-Prole Mounting Bracket with the included Low-Prole Mounting Bracket.
1. Use a to remove the from the Phillips Head Screwdriver Bracket Screws (2)
Network Card.
2. Remove the from the .Full-Prole Bracket Network Card
3. Line up the with the on the back of the Low-Prole Bracket Bracket Holes
Network Card.
4. Insert the that you removed in Step 1 and tighten them in place.Bracket Screws (2)
Installing the Network Card
Note: Network cards can be severely damaged by static electricity. Make sure that
you’re properly grounded before you open your computer case or touch the PCIe card.
1. Turn o the and any connected (e.g. printers, etc.).Computer Devices
2. Disconnect any connected and unplug the power cable from the Devices
Computer.
3. Open the . For more information, consult the user manual that came Computer Case
with the .Computer
4. Locate a and remove the corresponding metal cover PCI Express p1-x8 or x16 Slot
plate from the back of the . Computer Case
5. Gently insert the on the into the PCIe p1-x8 Connector Network Card PCI Express
Slot Computer.on the
6. Use a (sold separately) to fasten the on the Computer Case Screw Bracket Network
Card Computer Case to the back of the .
7. Place the cover back onto your . Computer Case
8. Insert a into the 40G QSFP+ Transceiver Module QSFP+ slot on the Network Card.
2
3
4
1
Probleemoplossing StarTech.com PEX40GQSFPI
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Gewicht: | 112 g |
| Breedte: | 121 mm |
| Diepte: | 181 mm |
| Hoogte: | 20 mm |
| Gewicht verpakking: | 242 g |
| Breedte verpakking: | 114 mm |
| Diepte verpakking: | 207 mm |
| Hoogte verpakking: | 38 mm |
| LED-indicatoren: | Ja |
| Connectiviteitstechnologie: | Bedraad |
| Snelstartgids: | Ja |
| Interface: | Fiber |
| Duurzaamheidscertificaten: | CE, RoHS |
| Netwerkstandaard: | IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3x |
| Temperatuur bij opslag: | -20 - 85 °C |
| Intern: | Ja |
| Hostinterface: | PCI Express |
| Maximale overdrachtssnelheid van gegevens: | 40000 Mbit/s |
| Datastroombeheer: | Ja |
| Ondersteunde server operating systems: | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Jumbo Frames ondersteuning: | Ja |
| Chipset: | Intel® XL710-BM1 |
| (Buitenste) hoofdverpakking hoogte: | 320 mm |
| (Buitenste) hoofdverpakking breedte: | 420 mm |
| (Buitenste) hoofdverpakking lengte: | 440 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 40 stuk(s) |
| Bedrijfstemperatuur (T-T): | 0 - 57 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 5 - 95 procent |
| Code geharmoniseerd systeem (HS): | 85176990 |
| Jumbo frames: | 9000 |
| Vezel-optische connector: | QSFP+ |
| Fibre channel-poorten: | 1 |
| VLAN-tagging: | Ja |
| Low-profile bracket: | Ja |
