Hardware Guide
Introduction
Thank you for purchasing a StarTech.com VGA
Video Splitter. An ideal solution for distributing
and delivering VGA source content for simulta-
neous display on up to eight monitors, this video
splitter is a perfect addition to retail, tradeshow,
education, government and corporate environ-
ments requiring high quality video.
Features
• Max. supported resolutions up to 1600 x1200
• Cascadable up to 3 levels
• Supports transmission distances up to 65m /
200’
System Requirements
• A computer with a VGA Card installed
• HDB15 male/female video cables

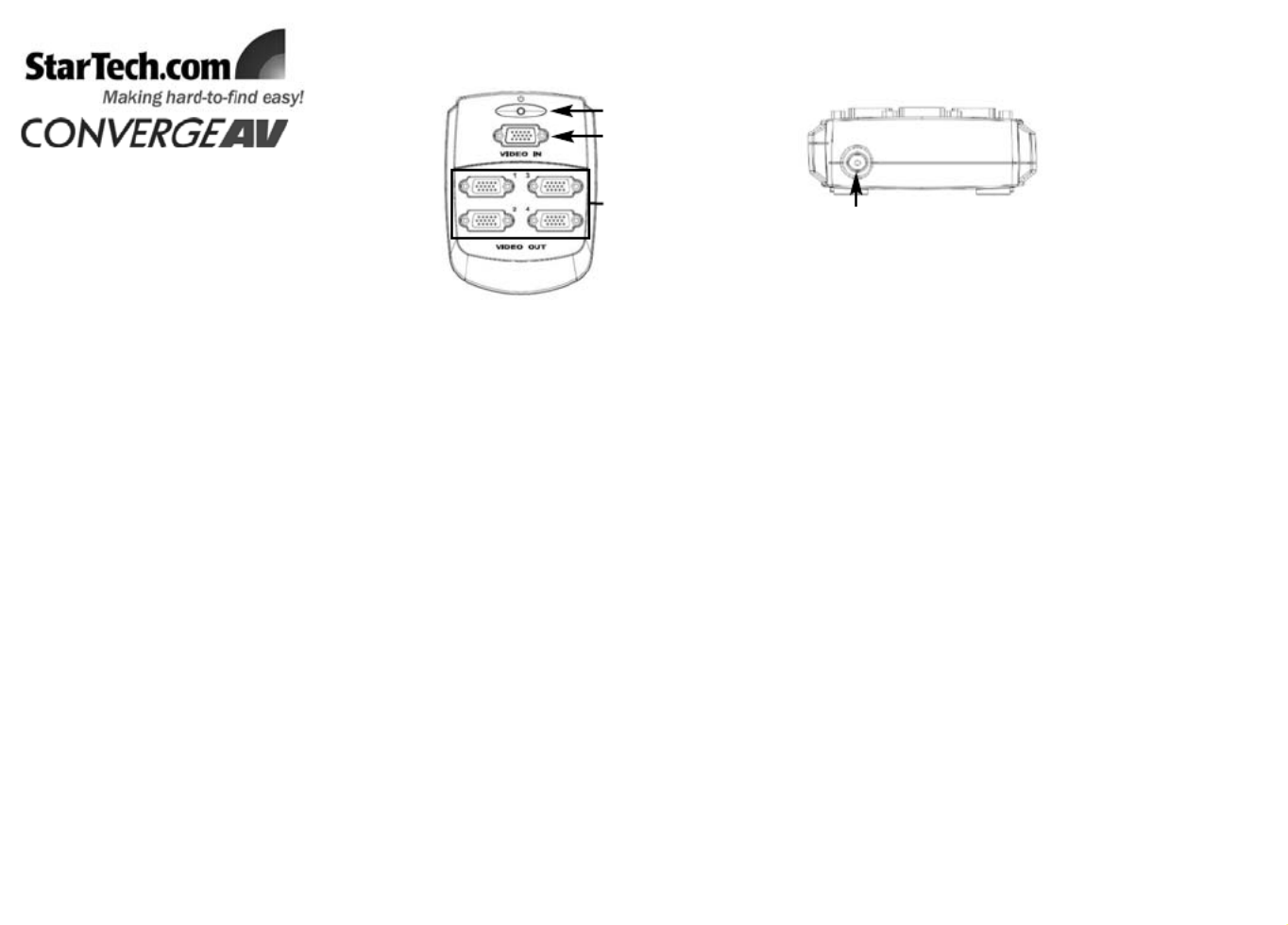

Top View (ST124W shown)
Power Indicator
Video IN port
Video OUT ports
Rear View (ST124W shown)
Power Port
Installation
Single Unit Installation
In a Single Unit Installation, only one video splitter is used, in turn limiting the number of displays to which
the split signal can be broadcast; a Cascaded configuration on the other hand, utilizes multiple splitters con-
nected to one another to providing numerous additional video connections (i.e. ST122W can be cascaded
to provide up to 8 video outputs, ST124W up to 64 and ST128W up to 512.
1. With the video source computer powered down, use a high density HDB15 male/female VGA cable to
connect the computer Video Out port to the Video IN port on the splitter.
2. Using a high density HDB15 male/female VGA cable for each connection, connect the monitors to the
Video OUT ports provided by the splitter.
3. Connect the Power Port on the video splitter to an available power outlet, using the provided adapter.
4. Power up the source computer and newly connected monitors.
Cascaded Installation
To cascade multiple splitters, use a high density HDB15 male/female VGA cable to connect any available
Video OUT port on the “higher level” video splitter to the Video IN port of the lower level video splitter.
You can cascade as many video splitters as there are ports available, however the signal will deteriorate
as distance between the monitor and source increases.
Please see reverse for a diagram depicting a cascaded configuration.
Probleemoplossing StarTech.com ST124W
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Gewicht: | 129 g |
| Gewicht verpakking: | 500 g |
| Breedte verpakking: | 59 mm |
| Hoogte verpakking: | 162 mm |
| Gebruikershandleiding: | Ja |
| Materiaal behuizing: | Kunststof |
| Maximum resolutie: | 1600 x 200 Pixels |
| Inclusief AC-adapter: | Ja |
| Certificering: | CE, FCC |
| Temperatuur bij opslag: | -20 - 60 °C |
| Output current: | 0.3 A |
| Spanning: | 9 V |
| Aansluiting(en): | 4 - DB15 F, 1 - DB15 M |
| Stapelbaar: | Ja |
| Maximale afstand: | 65 m |
| Afmetingen (B x D x H): | 82 x 105 x 28 mm |
| Lengte van de verpakking: | 240 mm |
| Video uit: | 4x VGA |
| Bandbreedte: | 250 MHz |
| Aansluiting video: | VGA |
| Stroomverbruik (typisch): | 2.7 W |
| Bedrijfstemperatuur (T-T): | 0 - 50 °C |
| Hoeveelheid Video ports: | 4 |
