Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 06/28/2011
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• 1 x VGA over Cat5 Remote Receiver
• 1 x Power Adapter
• 1 x Instruction Manual
System Requirements
• UTPE series video transmitter/splitter (i.e. ST124UTPE/ST128UTPE)
• VGA enabled display device (i.e. monitor, projector, etc.)
• Available AC electrical outlet
STUTPRXL / STUTPRXLGB / STUTPRXLEU
VGA Video Extender over Cat 5 Remote Receiver (UTPE Series)
Installation
Connecting the STUTPRXL Remote Receiver to the transmitter/
splitter:
Connect the Cat5 signal source cable running from the UTPE
series transmitter/splitter to the RJ45 connector at one end of the
Remote Receiver.
Connecting the STUTPRXL Remote Receiver to the VGA display/
monitor:
Connect a VGA male/male cable from the display device to the
VGA connector on the Remote Receiver.
Powering the Remote Receiver:
Connect the power adapter (provided) to the port marked DC
12V on the Remote Receiver. Connect the opposite end to an AC
electrical outlet or other suitable power source. The Power LED will
light up.
Adjusting image quality:
Once the necessary connections have been made, power on the
VGA display/monitor. On the bottom of the Remote Receiver, are
adjustment dials for EQ (sharpness) and GAIN (brightness). Using
a small Phillips or slot-head screwdriver, adjust the sharpness with
the dial marked EQ in a clockwise direction. Similarly, turn the
adjustment dial marked GAIN in a clockwise direction, to adjust
the brightness of the displayed image.
*actual product may vary from photos

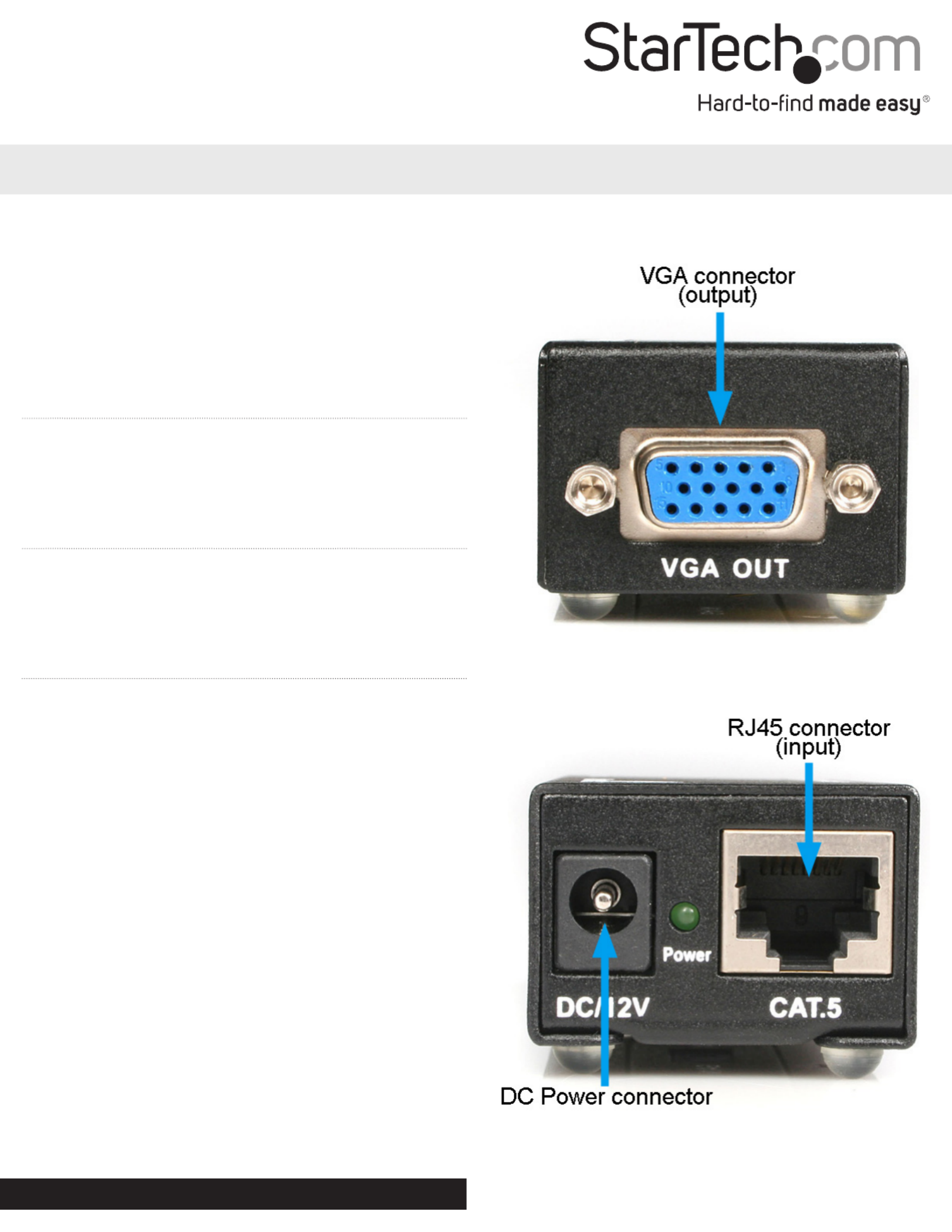

Front View
Rear View
Probleemoplossing StarTech.com STUTPRXL
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Breedte verpakking: | 64 mm |
| Diepte verpakking: | 152 mm |
| Hoogte verpakking: | 132 mm |
| Stroomvoorziening: | 12V DC, 600mA |
| Connectiviteitstechnologie: | Bedraad |
| Aansluitingen: | 1 x HD DB15 pin\n1 x RJ45 |
