Manual Revision: 07/10/2015
For the most up-to-date information, please visit: www.startech.com
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

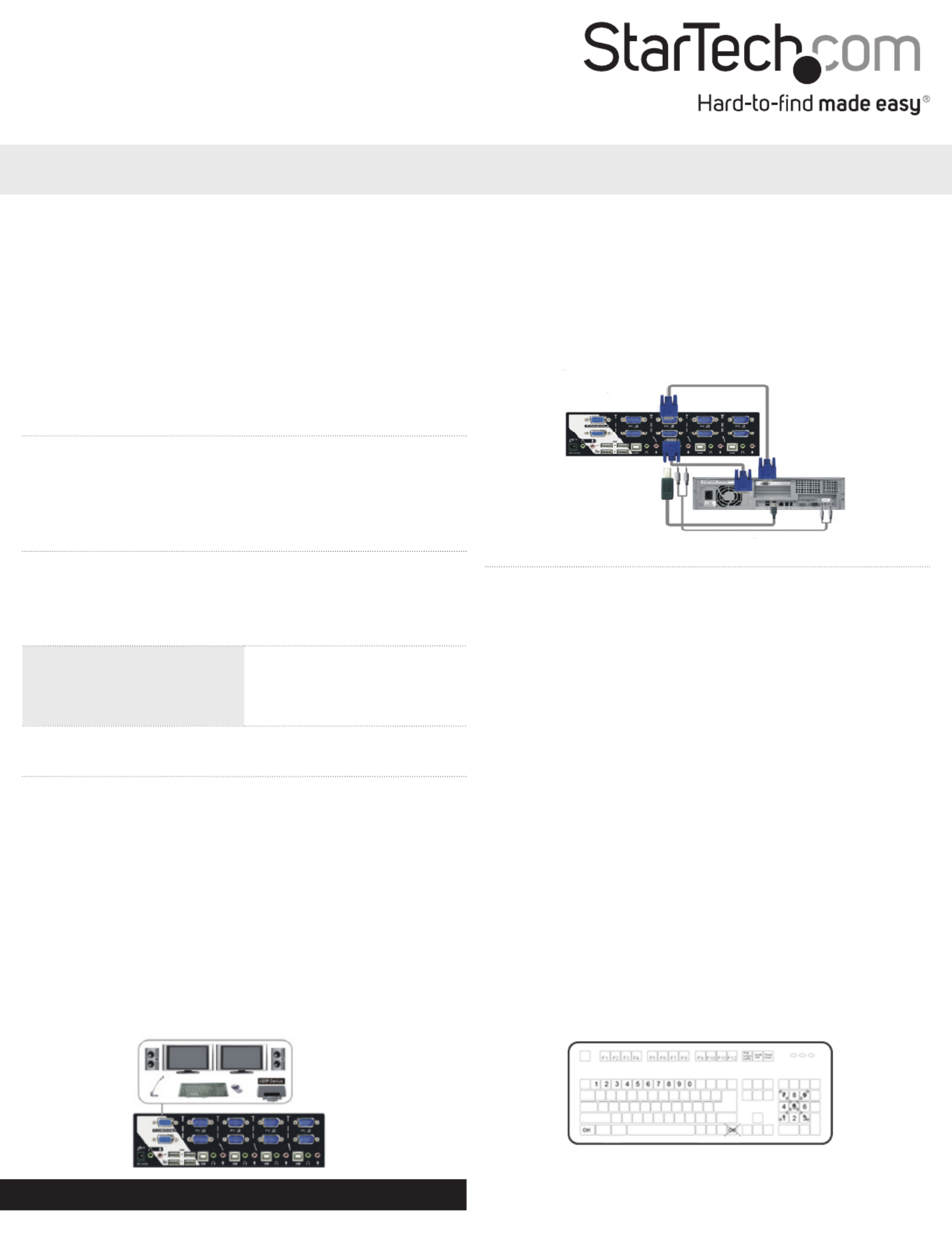

Quick Start Guide
Packaging Contents
• 1 x dual VGA USB KVM switch
• 1 x universal power adapter (NA/UK/EU/AU)
• 4 x rubber feet
• 1 x instruction manual
System Requirements
• 1 or 2 VGA monitors (monitor, projector, TV, etc.)
• A USB keyboard and mouse
• Microphone and speakers (optional)
SV231DVGAU2A / SV431DVGAU2A
2 / 4 Port Dual VGA USB KVM Switch with Audio & USB Hub
*actual product may vary from photos
Please visit www.startech.com/SV231DVGAU2A or www.startech.com/
SV431DVGAU2A for product specications.
LED Indicators
PC Selection Indicators
Green: Connected PC detected
(powered on)
Red: Active PC
O: No PC detected
Installation
For complete operating instructions / specications, please
visit www.startech.com/SV231DVGAU2A or www.startech.com/
SV431DVGAU2A.
Note: Prior to installation, please power o all devices that will be
connected to this system.
1. Connect 1 or 2 VGA monitors to the console connectors on the
back of the KVM switch.
2. Connect a USB keyboard and mouse into the marked USB ports
on the KVM switch.
3. (Optional) Connect a microphone and set of speakers to the
console audio ports.
4. (Optional) Connect your additional USB peripherals to the USB
hub ports.
Operation
Switching Between Systems
Pushbuttons
For the 2 port (SV231DVGAU2A) version, the front button will toggle
between the two computers when pressed.
For the 4 port (SV431DVGAU2A) version, each button on the front
panel associates with a connected computer for selection.
Hotkeys
A hotkey command is a short keyboard sequence for selecting
a computer, activating a computer scan, etc. A hotkey sequence
starts with two Left Ctrl keystrokes, pressed within and 0.2 seconds
followed by one or two keystrokes to complete the command.
A built-in buzzer generates a high-pitched beep for correct hotkey
commands; otherwise, one low-pitch beep occurs to indicate errors
and the bad key sequence won’t be forwarded to the selected
computer.
Note: To disable hotkey functions, press and hold Left Shift and press
Num Lock twice, then release followed by pressing Shift Left Ctrl
once.
5. Connect a male-to-male VGA cable from the VGA port on your
computer to the PC1 VGA port. Repeat for the secondary display
if needed.
6. Connect a USB A-B cable from an available port on your
computer to the PC1 USB port.
7. (Optional) Connect a 3.5 mm audio cable from your computer to
the PC1 audio ports.
8. Repeat steps 5 to 7 for the other PC connections.
Probleemoplossing StarTech.com SV231DVGAU2A
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Ingebouwd display: | Nee |
| Gewicht: | 768 g |
| Breedte: | 104 mm |
| Diepte: | 159 mm |
| Hoogte: | 57 mm |
| Type stekker: | Type M |
| Gewicht verpakking: | 1200 g |
| Breedte verpakking: | 241 mm |
| Diepte verpakking: | 187 mm |
| Hoogte verpakking: | 92 mm |
| Gebruikershandleiding: | Ja |
| Materiaal behuizing: | Staal |
| LED-indicatoren: | Ja |
| Stroom: | 0.6 A |
| Maximum resolutie: | 1920 x 1200 Pixels |
| Inclusief AC-adapter: | Ja |
| VGA (D-Sub)poort(en): | 6 |
| Hoofdtelefoonuitgangen: | 2 |
| Certificering: | CE, FCC, TAA, REACH |
| Aansluiting voor netstroomadapter: | Ja |
| HD type: | Full HD |
| Duurzaamheidscertificaten: | RoHS |
| Aantal gebruikers: | 1 gebruiker(s) |
| Temperatuur bij opslag: | -20 - 60 °C |
| Sneltoetsen: | Ja |
| Rack-montage: | Nee |
| Output current: | 1.5 A |
| Mean time between failures (MTBF): | 72000 uur |
| Aantal poorten USB 2.0 Type-B: | 2 |
| Aansluiting video: | VGA |
| AC-ingangsspanning: | 100 - 240 V |
| Stroomverbruik (typisch): | 18 W |
| Bedrijfstemperatuur (T-T): | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 0 - 90 procent |
| Code geharmoniseerd systeem (HS): | 85176200 |
| Aantal microfooningangen: | 2 |
| Aansluiting toetsenbord: | USB |
| Aansluiting muis: | USB |
| Aantal computers: | 2 |
| Console-poorten: | 3.5mm headphone, USB A, VGA (D-Sub) |
| Compatibele soorten stopcontacten: | AU, EU, UK, US |
| Audio-aansluitingen: | Ja |
| Doorgelust: | Nee |
| Aantal USB-poorten console: | 4 |
| Audio support: | Ja |
| IP control: | Nee |
