Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: April 3, 2020 10:52 AM

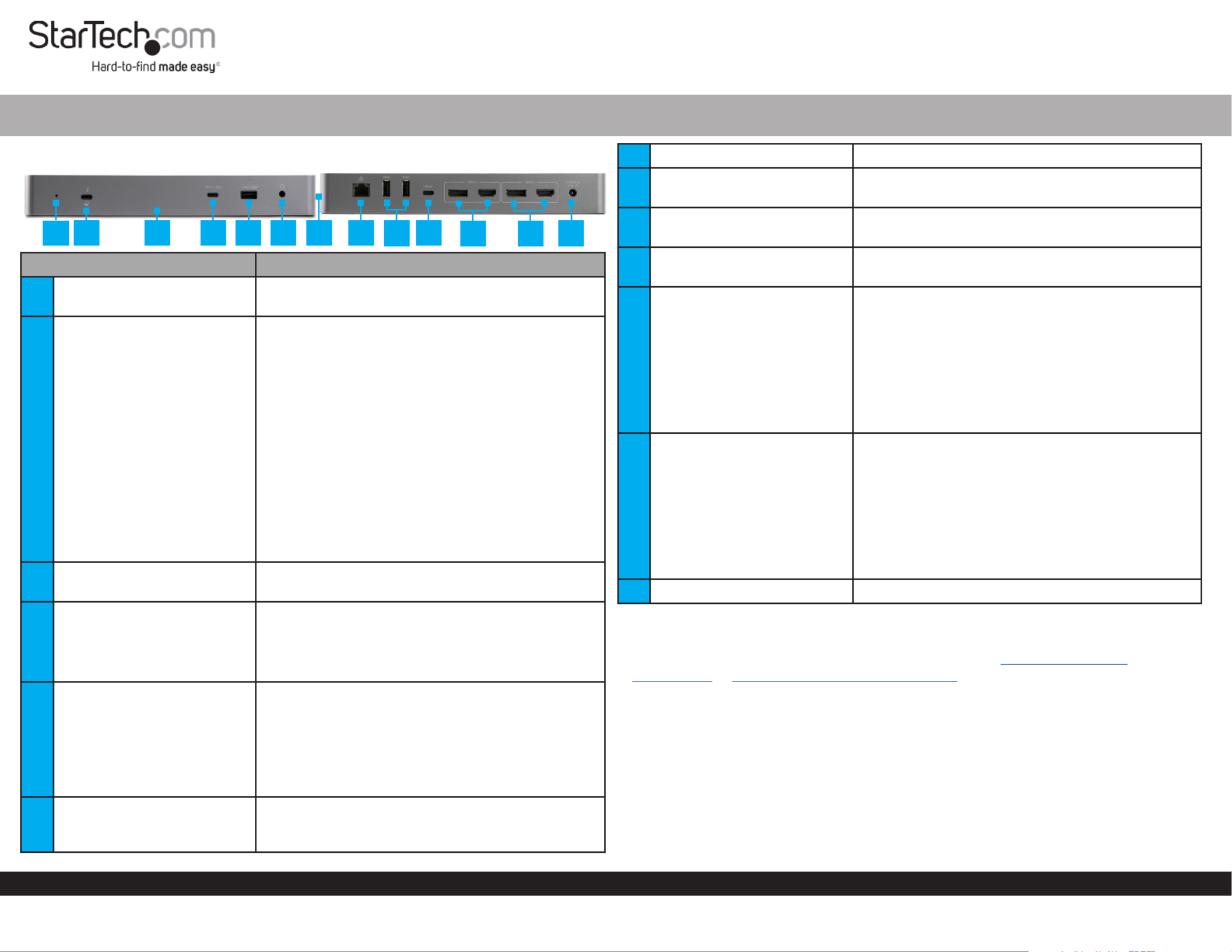

Product Diagram (TB3CDK2DH/TB3CDK2DHUE)
Component Function
1Power LED • Solid White: Docking Station Indicates that the
is receiving power.
2Thunderbolt 3/USB-C Host
Port
For Thunderbolt 3 and USB-C Laptops:
• Used to connect a Host Thunderbolt 3 or USB-C
laptop to the Docking Station.
• The supports USB Power Docking Station
Delivery. USB Power Delivery sends power over a
Thunderbolt 3 or USB-C cable to the connected
Host Computer.
Note: The Thunderbolt 3 port Host Computer’s
must support Power Delivery.
USB-C Laptops:
Note: To ensure maximum video compatibility, the
Host Computer must support DP Alt Mode when
connecting to the Docking Station.
3Mounting Holes x 4
(bottom)
• Used to mount the to a Docking Station Display
or . Surface
4USB-C Port (Charging)
• Used to charge a connected .USB Device
• Supports up to 5V at 3A, 15W charging.
• While charging a connection to a Host
Computer is not required.
5USB-A Port (Charging)
• Used to charge a connected .USB Device
• Fast-charge devices that comply with USB
Battery Charging Specication Revision 1.2.
• Supports up to 5V at 1.5A, 7.5W charging.
• While charging a connection to a Host
Computer is not required.
63.5 mm Audio Port
• Used to connect an (e.g. Audio Device
headphones, speakers, headset, etc.) to the
Docking Station.
Dual-4K Dock | Thunderbolt 3/USB-C | DP 1.4/HDMI
7Lock Slot (side) • Used to deter the theift of the Docking Stocking.
8RJ45 Port • Used to connect the to a Docking Station
Network Device.
9USB-A Ports (2) • Used to connect a (mouse, ash USB Device
drive, etc.).
10 USB-C Port • Used to connect a (mouse, ash USB Device
drive, etc.)..
11 Video 1 DisplayPort Port/
HDMI Port
DisplayPort Port:
• Used to connect a to the Display Device
Docking Station.
- or -
HDMI Port:
• Used to connect a to the Display Device
Docking Station.
12 Video 2 DisplayPort Port/
HDMI Port
DisplayPort Port:
• Used to connect a to the Display Device
Docking Station.
- or -
HDMI Port:
• Used to connect a to the Display Device
Docking Station.
13 DC 20V Port • Used to power the .Docking Station
Requirements
For the latest requirements and User Manual, please visit www.startech.com/
TB3CDK2DH www.startech.com/TB3CDK2DHUE or
Powering the Docking Station
1. Select the appropriate regional and connect it to the Power Cord Universal Power
Adapter.
2. Connect the to the on the Universal Power Adapter DC 20V Port Docking Station
and to an .AC Electrical Outlet
1 2 4 5 6 83 9
7 10 1311 12
