Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
I T: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
P T: Guia do usuário - pt.startech.com
Manual Revision: 01/22/2015
For the most up-to-date information, please visit: www.startech.com
USB2001EXT2/USB2002EXT2/USB2004EXT2
1/2/4 Port USB 2.0 Extender over Cat5 or Cat6 - Up to 330 ft (100m)
Packaging Contents
• 1 x USB extender Transmitter/Local unit
• 1 x USB extender Receiver/Remote unit
• 1 x Power Adapter
• 3 x Power Cord (NA/UK/EU)
• 4 x Mounting Bracket
• 1 x USB cable
• 1 x Installation Guide
System Requirements
• USB enabled computer system with available USB port
• Available AC power outlet
• Solid core Category 5e unshielded twisted pair (UTP) or greater cabling.
Installation
1. Place the Local and Remote units at the desired locations and
connect together using RJ45 terminated Cat5 or Cat6 cabling.
a) If you are using surface cabling, ensure you have enough Cat5e
cabling to connect the Local Unit to the Remote Unit’s location,
and that each end is terminated with a RJ45 connector. The cabling
cannot go through any networking equipment (i.e. router, switch).
OR
b) If you are using premise cabling, ensure that the Cat5e
cabling between the Local Unit to the Remote Unit has been
properly terminated in a wall outlet in each location and there is
a patch cable long enough to connect the Remote Unit to their
respective outlets. The cabling cannot go through any networking
equipment (i.e. router, switch).
2. Connect the included power adapter to the Local unit
(USB2002EXT2) or the Remote unit (USB2004EXT2/USB2001EXT2).
The Power LED should light up solid.
3. Connect the Local unit to the host computer system with a USB
cable. The computer can be either powered On or O. The operating
system should detect the extender and install it automatically.
4. USB devices can now be connected to the Remote unit.

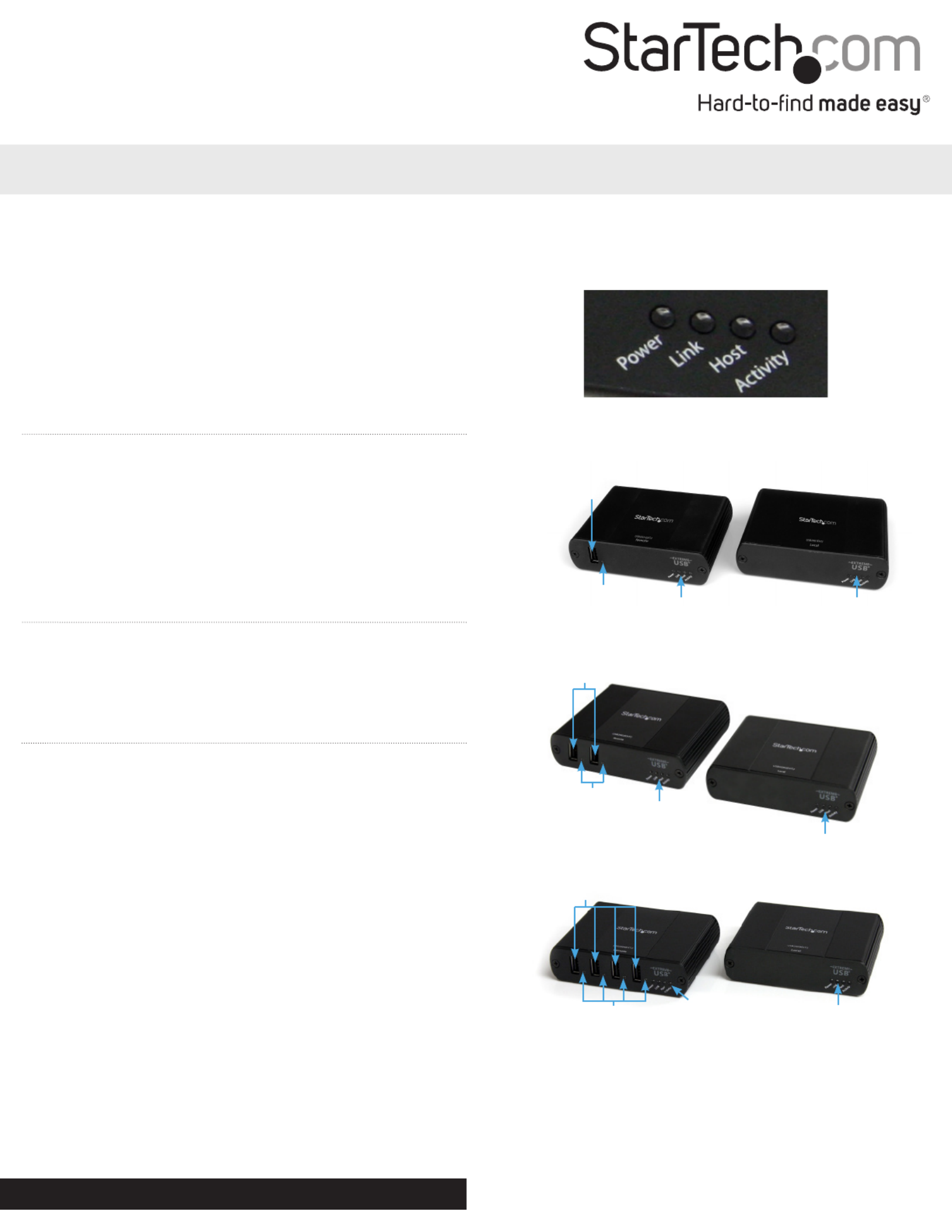

USB2001EXT2 Front
USB Type A
Connector
USB Device
Status LED
Indicators Extender Status
LED Indicators
Remote Unit Local Unit
USB2004EXT2 Front
USB Type A
Connector
Remote Unit Local Unit
USB2002EXT2 Front
USB Type A
Connector Remote Unit Local Unit
LED Status Indicators
Extender Status
LED Indicators
Extender Status
LED Indicators
Extender Status
LED Indicators
Extender Status
LED Indicators
Extender Status
LED Indicators
USB Device
Status LED
Indicators
USB Device
Status LED
Indicators
Probleemoplossing StarTech.com USB2001EXT2
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Gewicht: | 315 g |
| Breedte: | 76 mm |
| Diepte: | 100 mm |
| Hoogte: | 26 mm |
| Type stekker: | Type C |
| Gewicht verpakking: | 1200 g |
| Breedte verpakking: | 250 mm |
| Diepte verpakking: | 200 mm |
| Hoogte verpakking: | 75 mm |
| Soort: | Console-zender & ontvanger |
| Materiaal behuizing: | Aluminium |
| LED-indicatoren: | Activity, Link |
| Stroom: | 0.6 A |
| Montage gereedschap: | Ja |
| Meegeleverde kabels: | USB |
| Snelstartgids: | Ja |
| Inclusief AC-adapter: | Ja |
| Aantal USB 2.0-poorten: | 2 |
| Certificering: | CE, FCC |
| Aansluiting voor netstroomadapter: | Ja |
| Duurzaamheidscertificaten: | RoHS |
| Ingangsspanning: | 110 - 240 V |
| Temperatuur bij opslag: | -20 - 70 °C |
| Output current: | 3 A |
| Spanning: | 5 V |
| RJ-45 ports hoeveelheid: | 2 |
| (Buitenste) hoofdverpakking hoogte: | 400 mm |
| (Buitenste) hoofdverpakking breedte: | 520 mm |
| (Buitenste) hoofdverpakking lengte: | 508 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 24 stuk(s) |
| Maximaal bereik: | 100 m |
| Overdrachtssnelheid: | 480 Mbit/s |
| Stroomverbruik (typisch): | 18 W |
| Bedrijfstemperatuur (T-T): | 0 - 50 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 20 - 90 procent |
| Code geharmoniseerd systeem (HS): | 84733020 |
| Ondersteundende kabel types: | Cat5e, Cat6 |
