1
http://qr.theben.
de/o/urls/433
Link to the
manual

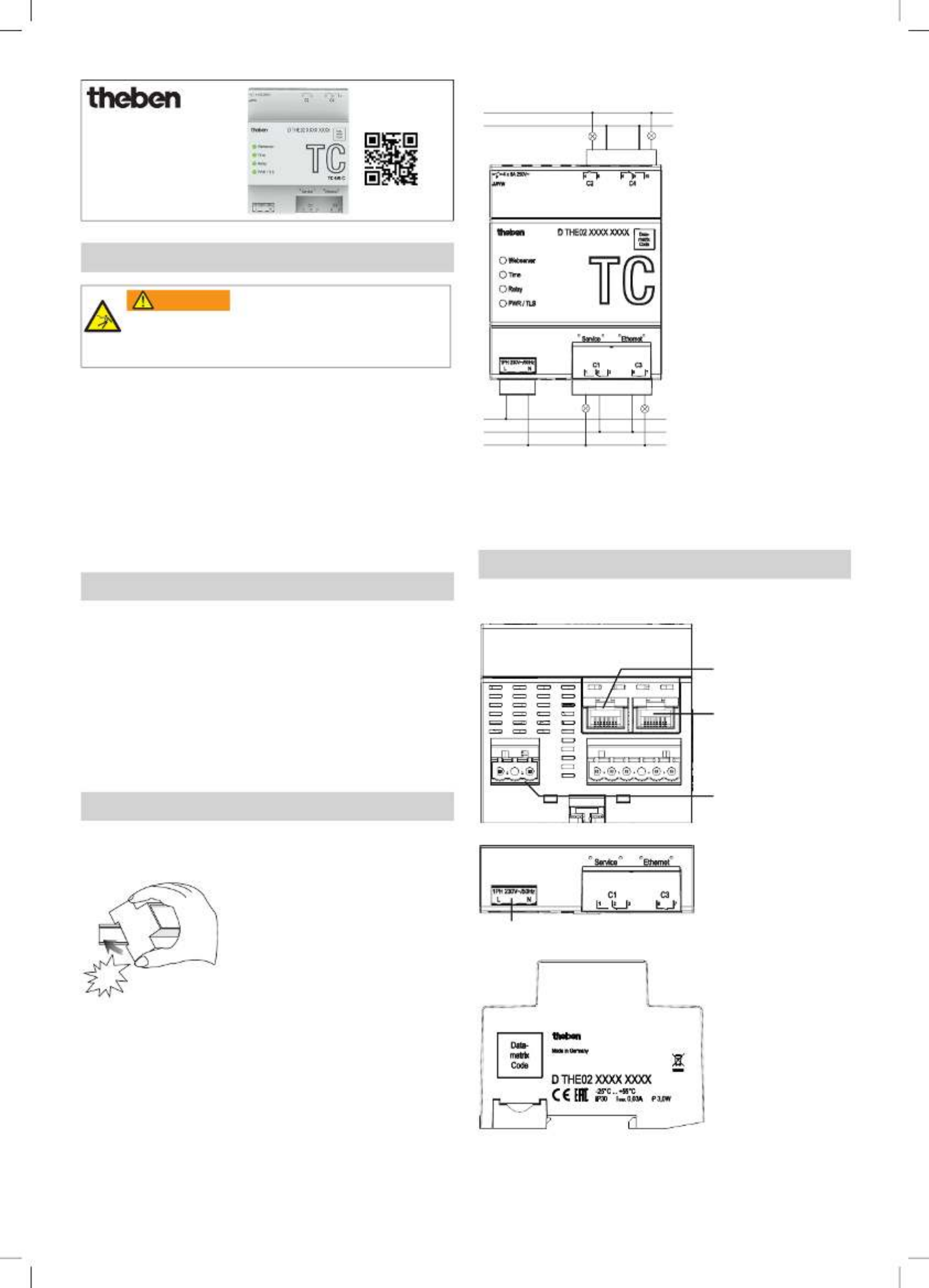

Installation and operating
instructions
307456
TC 649 C 6490430
Control box Cloud
1. Basic safety information
Danger of death through electric shock or fire!
Installation should only be carried out by a qualied
electrician!
WARNING
•The device is designed for installation on DIN top hat rails (in
accordance with IEC 60715)
•It complies with product standard EN 60669-2-1
Do not operate the device outside the specied technical data
!The device must be installed in an enclosed switchgear cabinet
made of metal or an appropriate re-resistant material!
!After proper installation, the housing component under the
cover must not be accessible!
2. Proper use
Control box TC 649 C is an annual time switch with astronomical
function, which can be controlled and updated via Theben Cloud and
managed centrally from a computer and a smartphone. The control
box is used for lighting and ventilation.
!Do not use on safety devices, e.g. escape route doors, re
safety equipment, etc.
Disposal
For an environmentally appropriate disposal, send the device back
to the owner
3. Installation and connection
Installing TC 649 C
click
Connecting TC 649 C
Connecting the power supply
Strip cable to 8 mm (max. 9 mm)
Insert the line into the terminal and fasten it
Plug terminal into power supply socket
Connect to power supply
▻ During the start of the operating system, all LEDs are ashing.
After approx. 150 s the start process is completed and the
power LED (PWR/TLS) ashes.
Wiring diagram
L
L
N
L L LN
L L
L
N
TC 649 C
LSwitch the load with a contactor.
!If a load is switched directly, secure the device with a circuit
breaker of 6 A.
4. Device description
Connections
Service interface
Connection to LAN
network
Power supply
socket (230 V)
Voltage
LThe performance specications can be found on the side and on
the device shoulder (see picture). After installation they are not
visible any more!
