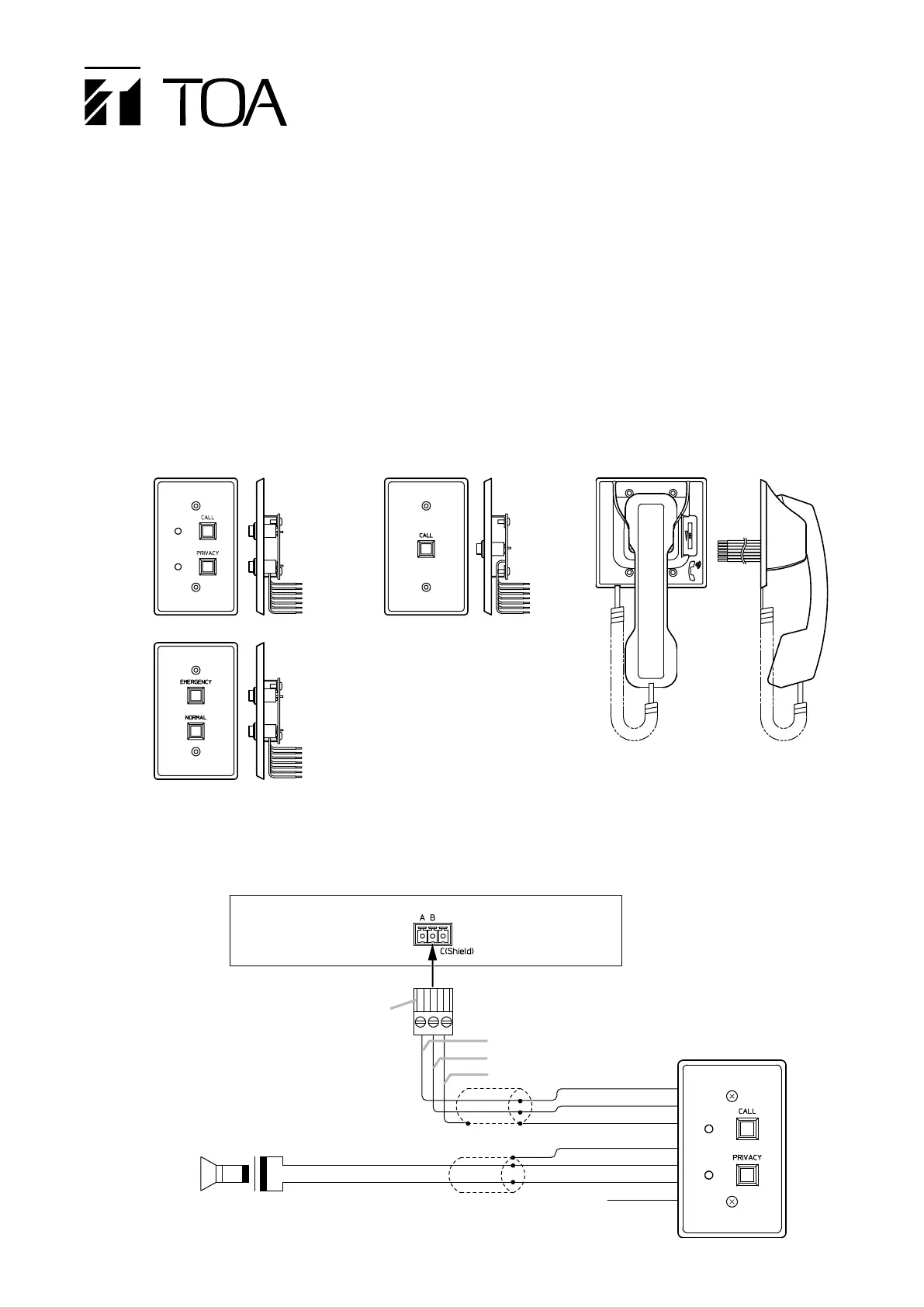

INSTALLATION MANUAL
3P removable terminal plug
(supplied with the Substation
interface unit)
Substation interface unit
2-core shielded cable
2-core shielded cable
High-impedance speaker
(Impedance: 600 Ω or more)
Switch panel
(Figure shows the RS-140.)
Brown (A)
Red (B)
Orange (C)
Yellow (C+)
Green (B+)
Blue (A+)
Blue (COM)
Green (HOT)
N.C.
Purple (H)
Brown
Red
Orange
To the substation connection terminal
1. GENERAL DESCRIPTION
The RS-140, RS-143, and RS-144 are substations to be connected to the 2-Core Shielded Substation Interface
Unit. The RS-141, designed exclusively for indoor-use in combination with the RS-140, RS-143, or RS-144, is an
option handset to make handset conversations.
For operation of the units, refer to the N-8000 series instruction manual.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
2. APPEARANCE
RS-140, RS-143, RS-144
RS-141
SWITCH PANELS
OPTION HANDSET
Note
Cut out the unused Wire (purple) to
avoid short-circuiting.
3. CONNECTIONS
3.1. Switch Panel Connections (When the Option Handset is not used)
[RS-140] [RS-143]
[RS-144]
[RS-141]
Probleemoplossing Toa RS-144
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Roestvrijstaal |
| Gewicht: | 80 g |
| Breedte: | 70 mm |
| Diepte: | 28.6 mm |
| Hoogte: | 115 mm |
| Montagewijze: | Muur |
| Materiaal: | Metaal |
| Aantal per verpakking: | 1 stuk(s) |
| Merkcompatibiliteit: | TOA |
| Compatibiliteit: | TOA N-8000RS, N-8010RS 2-Core |
| Bedrijfstemperatuur (T-T): | 0 - 40 °C |
| Type product: | Onderstation |
