Thank you for purchasing TOA’s Remote Control Panel.
Please carefully follow the instructions in this manual to ensure long, trouble-free
use of your equipment.
1. GENERAL DESCRIPTION
The WP-700-AM is a remote control switch/volume panel that designed for
MA-725F(or MM-700F) amplifiers, which can remote input source and
adjust volume level through connected to MA-725F(or MM-700F)
amplifier. Also it can be mounted in a 1-gang electrical box (American type).
2. NOMENCLATURE AND FUNCTIONS
Input select
Select by rotating the knob from LINE1~LINE4
(Note: MA-725F(or MM-700F) input select switch is invalid when WP-700-AM
plugged in.)
Output volume control
Adjusts volume level by rotating the knob
(Note:MA-725F(or MM-700F) volume switch is invalid when WP-700-AM
plugged in.)
RJ-45 connector
Connects to MA-725F(or MM-700F) amplifier or WP-700-AM with a CAT5/5e/6
shielded cable.
3. CONNECTIONS
MA-725F(or MM-700F) amplifier can connect and control Maximum of 4
WP-700-AM remote control panel, It can be connected by CAT5/5e/6 STP
between the WP-700-AM and the whichMA-725F(or MM-700F)
length 300 feet in max.
For the method, refer to the instruction manual supplied with the MA-725F(or
MM-700F) Amplifier.
Connection guide as shown below.

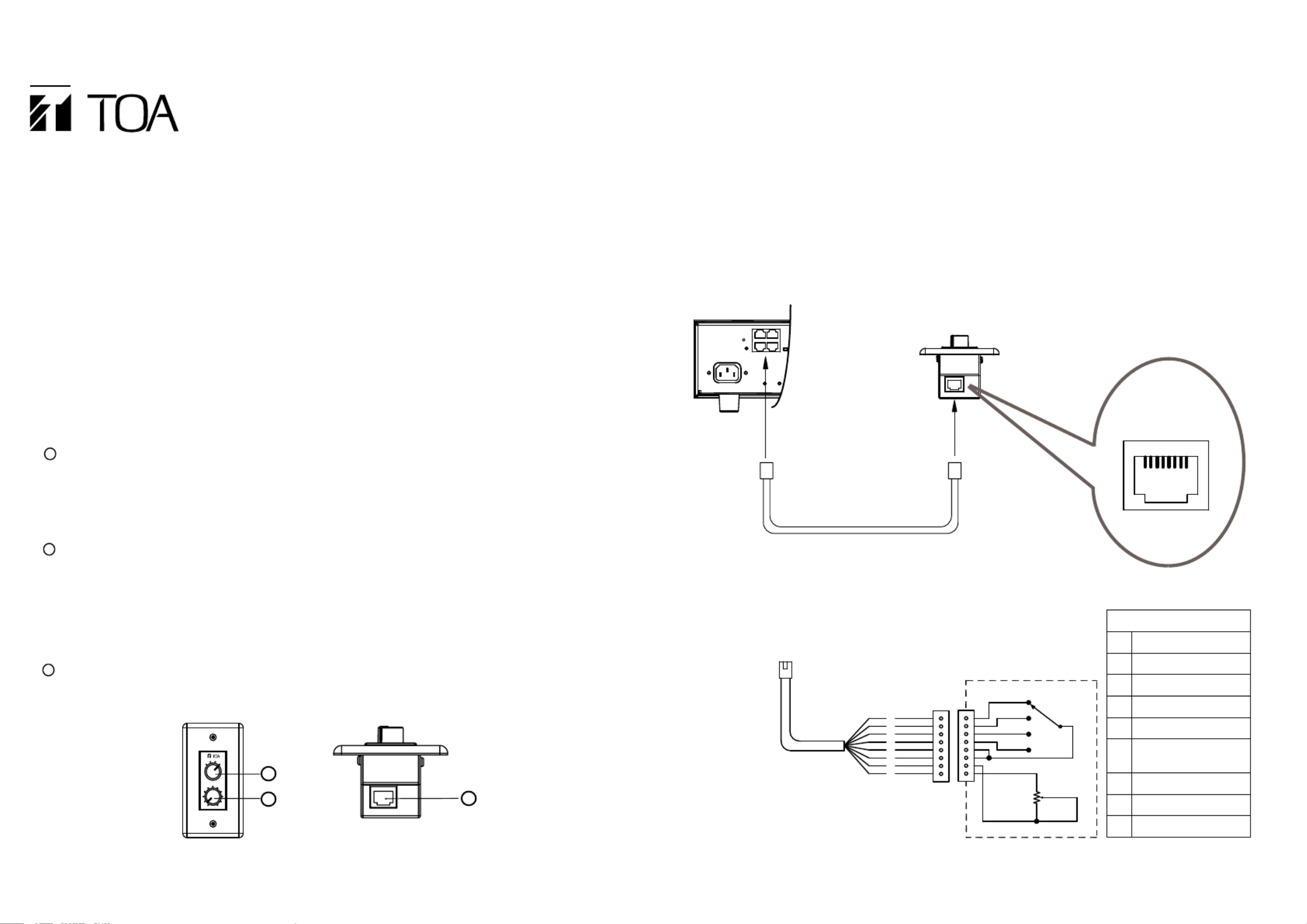

OPERATING INSTRUCTIONS
REMOTE CONTROL PANEL
WP-700-AM
TOA Corporation
1
23
LINE 1
LINE 2 LINE 3
LINE 4
VOLUME
0 10
WP-700-AM
MA-725F, MM-700F
RJ45
LINE 1
LINE 2
LINE 3
LINE 4
10k (B)
1
2
3
4
5
6
7
8
(C.C.W.)
RJ45 Pin Assignment
No. Definition
1 LINE 1 SW
2 LINE 2 SW
3 LINE 3 SW
4 LINE 4 SW
5DETECTION OF
WP-700-AM(GND)
6 GND
7 REMOTE VOL +
8
MA-725F,
MM-700F
RJ45RJ45
CAT5/5e/6
STP cable
MP-700-AM
RJ45 Pin No.
12345678
select
Ethernet
source
Input source
2
CAT5/5e/6
STP cable
REMOTE VOL -
cable
s
cable
1
3
