The FDX-2500 consists of a transmitter
and receiver that extend KVM, DVI-D,
audio and RS-232 signals. It is a
professional quality KVM capable of
extending signals up to 15 kilometers
over a single singlemode ber optic cable.
FDX-2500
DVI-D Video, Stereo Audio, PS/2
Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
www.smartavi.com
Installation
Manual
What’s in the Box?
PART NO. QTY DESCRIPTION
FDX-TX2500 1 FDX-2500 Transmitter Unit - DVI-D, Stereo
Audio, PS/2 Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
FDX-RX2500 1 FDX-2500 Receiver Unit - DVI-D, Stereo
Audio, PS/2 Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
Power Supply 2 PS5VDC4A
Technical Specications
VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (2) DVI-D 29-pin female
Output Interface (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC Internal
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Frequency Response 20 Hz to 20 KHz
Impedance 600 ohm
Nominal Level 0-1.0 V
Common Mode Rejection at 60dB
Input Interface (1) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
PS/2
Signaling PS/2 Keyboard and Mouse ONLY
Input Interface (2) PS/2 Female
Output Interface (2) PS/2 Female
OTHER
Power External 100-240 VAC/5VDC4A @20W
Dimensions 4.5”W x 5.375”H x 1.75”D
Weight 1 lb.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
RS-232 Data up to 115,000 bps

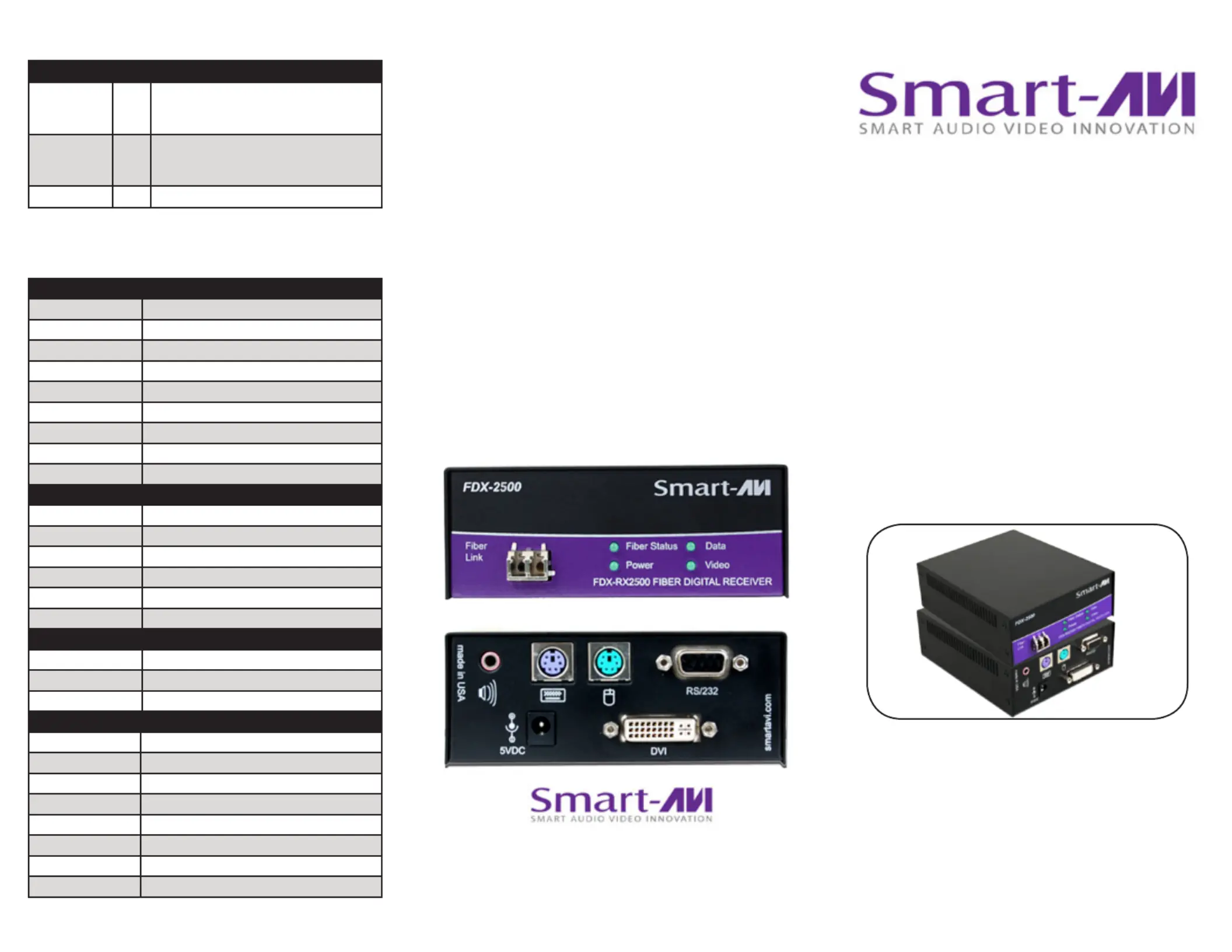

FDX-2500 Receiver Front
