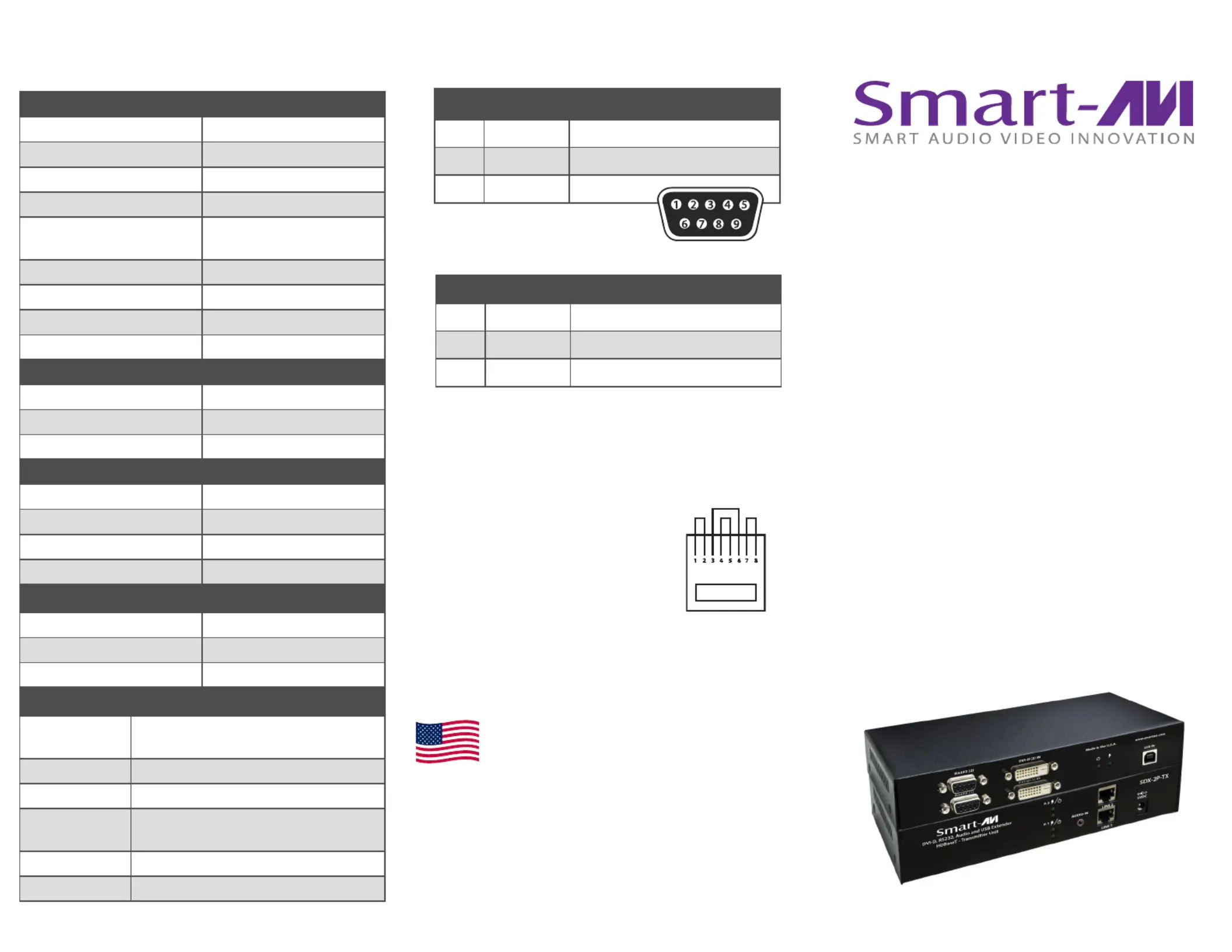

USER MANUAL
SDX- 2P
EXTEND DUAL DVI-D, DUAL RS232,
USB KEYBOARD, MOUSE AND
AUDIO UP TO 400 FEET OVER
DUAL CAT5/5E/6 CABLE
VIDEO
Format (2) DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (2) DVI- -pin (Female) D 29
Output Interface (RX) (2) DVI- -pin (Female) D 29
Resolution Up to 1920 x 1200
@60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
RS232
Input Interface (2) DB9 (Female)
Output Interface (2) DB9 (Male)
Control @ 115 Kbps
OTHER
Power External 100-240 VAC/5VDC4A
@20W
Dimensions 8.25 in W x 1 in H x 3.5 in D
Weight 4 lbs.
Operating
Temp.
0-55 °C (32-131°F)
Storage Temp. - -85 °C (-4-185 °F) 20
Humidity Up to 95%
AUDIO
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 100 Ohm
Connector 3.5 mini jack, Female
TECHNICAL SPECIFICATIONS
SUPER RANGE HDBaseT
DUAL DVI-D, DUAL
RS232, AUDIO AND USB
KEYBOARD AND MOUSE
EXTENDER
USB
Signal Type USB 1.1
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (2) USB Type A (Female)
RECEIVE ON DB9 MALE
PIN # NAME DESCRIPTION
2 RxD Receive Data on DB9 Male
3 Transmit Data on DB9 Male TxD
5 SGND Ground
PIN # NAME DESCRIPTION
2 Transmit Data on DB9 Female TxD
3 RxD Receive Data on DB9 Female
5 SGND Ground
TRANSMIT ON DB9 FEMALE
PREPARING AND CONNECTING SYSTEM
CAT5 CABLE
Following is the wiring standard for terminating CAT 5
cable using RJ-45 connector:
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
Connectors: - RJ 45
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and Manufactured in the USA
