Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: July 12, 2022

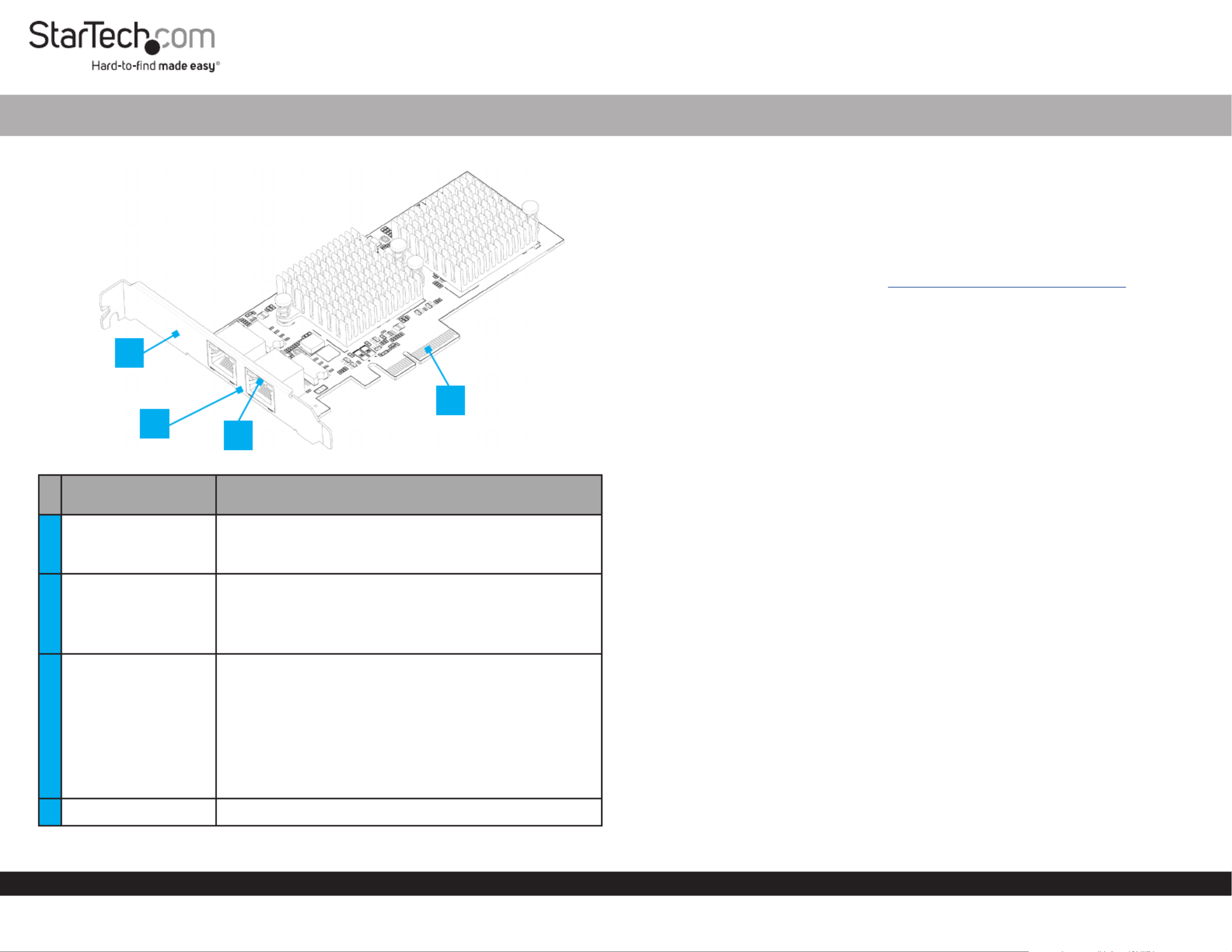

Product Diagram (ST10GSPEXNDP2)
Port/LED/Connector Function
1Bracket
• Secures the card to the Computer Case
• The comes pre-installedFull-Height Bracket
• The is included Low-Prole Bracket
22x Ethernet Ports
• Connect a to the Network Cable Network Card
• Supports
10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps
For 10 Gbps speeds Cat6 or higher cable is needed
3LED Indicators
• Left LED Indicator Link Speed is
• Solid Green = 10 Gbps
• Solid Amber =
5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps
• Right LED Indicator Link Status is
• Solid Green = Active link
• Flashing Green = Activity
4PCIe p1-x4 Connector • Insert into a on the PCI Express Slot Host Computer
2-Port 10GBase-T / NBase-T Ethernet Network Adapter Card - PCIe Ver 3.0 x4
Package Contents
• PCIe 10 Gbps Network Card x 1
• Low-prole Bracket x 1
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit www.startech.com/ST10GSPEXNDP2
• Computer with an available PCI Express Slot (x4, x8, or x16)
Installation
Install the PCI Express Card
WARNING!
Static Electricity PCI Express Cardscan severely damage . Ensure that you are
adequately before you open your or touch the Grounded Computer Case PCI
Express Card Anti-Static Strap Anti-Static Mat . You should wear an or use an when
installing any computer component. If an isn’t available, discharge Anti-Static Strap
any built-up static electricity by touching a large for several Grounded Metal Surface
seconds. Only handle the by its edges and don’t touch the gold PCI Express Card
connectors.
1. Turn o the and any that are connected to it (for Computer Peripheral Devices
example, , , ).Printers External Hard Drives etc.
2. Unplug the from the back of the .Power Cable Computer
3. Disconnect any that are connected to the .Peripheral Devices Computer
4. Remove the from the . Consult the documentation that came Cover Computer Case
with the for details about doing this safely.Computer
5. Locate an open and remove the corresponding PCI Express Slot Slot Cover Plate
from the back of the . Consult the documentation that came with Computer Case
the for details about doing this safely. This card works in PCI Express , Computer x4
x8 x16 Slots, or .
6. Gently insert the into the open and fasten the PCI Express Card PCI Express Slot
Bracket Computer Case to the back of the .
Note: If you install the into a or a PCI Express Card Small Form Factor Low-Prole
Desktop System, it may be necessary to replace the pre-installed standard
Full-Height Bracket Low-Prole Bracketwith the included .
2
4
1
3
Probleemoplossing StarTech.com ST10GSPEXNDP2
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Gewicht: | 116 g |
| Breedte: | 20 mm |
| Diepte: | 145 mm |
| Hoogte: | 65 mm |
| Gewicht verpakking: | 208 g |
| Breedte verpakking: | 145 mm |
| Diepte verpakking: | 215 mm |
| Hoogte verpakking: | 35 mm |
| LED-indicatoren: | Activity, Link, Status |
| Connectiviteitstechnologie: | Bedraad |
| Ethernet LAN: | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten: | 2 |
| Interface: | Ethernet |
| Duurzaamheidscertificaten: | CE |
| Ethernet LAN, data-overdrachtsnelheden: | 10,100,1000,2500,5000,10000 Mbit/s |
| Bekabelingstechnologie: | 10GBase-T |
| Netwerkstandaard: | IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Temperatuur bij opslag: | -10 - 60 °C |
| Intern: | Ja |
| Naleving van duurzaamheid: | Ja |
| Ondersteunt Linux: | Ja |
| Snelle installatiehandleiding: | Ja |
| Ethernet interface type: | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Hostinterface: | PCI Express |
| Maximale overdrachtssnelheid van gegevens: | 10000 Mbit/s |
| Maximale afstand: | 100 m |
| Ondersteunde server operating systems: | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Montagebeugels meegeleverd: | Ja |
| Jumbo Frames ondersteuning: | Ja |
| Full duplex: | Ja |
| Chipset: | Marvell AQC113CS |
| Component voor: | Pc/server |
| (Buitenste) hoofdverpakking hoogte: | 315 mm |
| (Buitenste) hoofdverpakking breedte: | 440 mm |
| (Buitenste) hoofdverpakking lengte: | 370 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 40 stuk(s) |
| Auto MDIX IEEE: | Ja |
| Wake-on-LAN: | Ja |
| Bedrijfstemperatuur (T-T): | 5 - 50 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 20 - 80 procent |
| Jumbo frames: | 16000 |
| PCI versie: | 3.0 |
| PCI Card form factor: | Full-height (low-profile) |
| VLAN-tagging: | Ja |
