StarTech.com AS445C-POE-INJECTOR Handleiding
Hier is de StarTech.com AS445C-POE-INJECTOR (Netwerkkaart/adapter) gebruikershandleiding. 2 pagina's in taal Engels met een gewicht van 538,608.0 Mb. Als u geen antwoorden op uw probleem kunt vinden Vraag het onze community.
Pagina 1/2
Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
Manual Revision: September 14, 2023

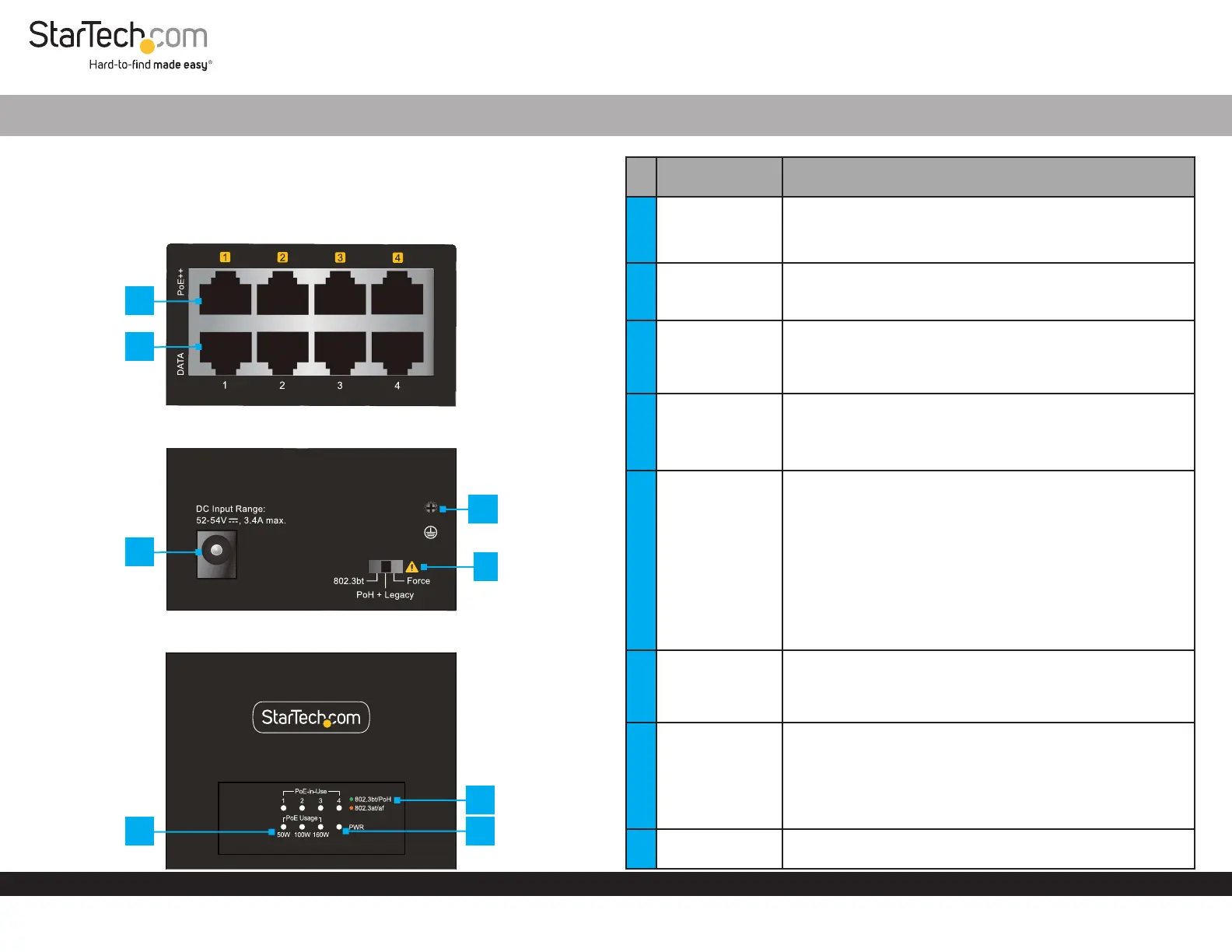

Product Diagram
AS445C-POE-INJECTOR
Front View
Back View
Top View
4-Port 802.3bt 90W 5Gbps PoE Injector
Port/LED/
Connector
Function
1
PoE++ Ports x 4
(Data + Power)
• Connect a Network Cable to a PD (Powered Device)
Note: 160W shared power allocation across all PoE ports.
• Supports 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
2
Data Ports x 4
(Data Input)
• Connect a Network Cable to a Network Device
• Supports 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
3 DC Power Port
• Connect to a Power Source using the included Power
Adapter
• Recommended 54 V and 3.3 A. Type M barrel plug,
Ø 5.5x2.1x9.5mm
4 Grounding Point
• Attach a Grounding Wire to the PoE Injector and to an
Earth Ground Connection
Note: A Grounding Wire is typically green or green with a
yellow stripe and should be at least 18 AWG.
5
PoE Operation
Mode Switch
• Three positions are available:
• 802.3bt (default). Operates as a 90W
802.3bt PoE++ type 4 PSE (Power Source Equipment)
• PoH + Legacy. Operates as a 95W PoH (Power over HD-
BASE-T) PSE with Legacy function
• Force. Operates as a non-negotiating 4-pair 60W
PoE PSE. Useful for PoE devices that lack a proper
handshake.
Warning! Force Mode is intended for PoE PDs only.
6 PoE Usage LEDs
• Steady Amber. Indicates that the system is consuming
over the indicated PoE power budget
• Blinking Amber. Indicates that the system is consuming
under the indicated PoE power budget
7 PoE-in-Use LEDs
• Steady Green. Indicates that the port is providing 802.3bt
PoE++/PoH/Force power to the remote powered device
• Steady Amber. Indicates that the port is providing 802.3af/
at PoE/PoE+ power to the remote powered device
• O. Indicates that no power is being provided to the
remote device
8 Power LED
• Steady Green. Indicates that power is being supplied to
the PoE Injector
*Product may vary from image
1
2
3
5
4
7
6 8
Probleemoplossing StarTech.com AS445C-POE-INJECTOR
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Grijs |
| Gewicht: | 278 g |
| Breedte: | 70 mm |
| Diepte: | 94 mm |
| Hoogte: | 39 mm |
| Gewicht verpakking: | 1700 g |
| Breedte verpakking: | 170 mm |
| Diepte verpakking: | 300 mm |
| Hoogte verpakking: | 90 mm |
| Materiaal behuizing: | Metaal |
| LED-indicatoren: | Status |
| AC-adapter ingangsspanning: | 100 - 240 V |
| Stroom: | 2.5 A |
| Inclusief AC-adapter: | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten: | 8 |
| Aansluiting voor netstroomadapter: | Ja |
| Duurzaamheidscertificaten: | CE, Federal Communications Commission (FCC), UKCA |
| Ethernet LAN, data-overdrachtsnelheden: | 10,100,1000,2500,5000 Mbit/s |
| Netwerkstandaard: | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Temperatuur bij opslag: | -10 - 70 °C |
| Luchtvochtigheid bij opslag: | 5 - 95 procent |
| AC-adapter, uitgangsspanning: | 54 V |
| Naleving van duurzaamheid: | Ja |
| Output current: | 3.3 A |
| Snelle installatiehandleiding: | Ja |
| Ethernet interface type: | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ophangsysteem voor aan de muur: | Ja |
| Auto MDI/MDI-X: | Ja |
| Power over Ethernet (PoE): | Ja |
| RJ-45 uitgang ports: | 4 |
| Maximale afstand: | 100 m |
| Jumbo Frames ondersteuning: | Ja |
| RJ-45 invoer ports: | 4 |
| Chipset: | Microsemi - PD69208T4, Microsemi - PD69200R |
| (Buitenste) hoofdverpakking hoogte: | 325 mm |
| (Buitenste) hoofdverpakking breedte: | 475 mm |
| (Buitenste) hoofdverpakking lengte: | 370 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 10 stuk(s) |
| Bedrijfstemperatuur (T-T): | 0 - 50 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 5 - 95 procent |
| Aantal producten inbegrepen: | 1 stuk(s) |
| Totaal Power over Ethernet (PoE)-budget: | 160 W |
| Jumbo frames: | 9000 |
| Ondersteundende kabel types: | Cat5e, Cat6, Cat6a |
| Stroom via Ethernet (PoE): | - V |
