StarTech.com MR12GI-NETWORK-CARD Handleiding
Hier is de StarTech.com MR12GI-NETWORK-CARD (Netwerkkaart/adapter) gebruikershandleiding. 2 pagina's in taal Engels met een gewicht van 525,748.0 Mb. Als u geen antwoorden op uw probleem kunt vinden Vraag het onze community.
Pagina 1/2
Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
Manual Revision: December 13, 2023

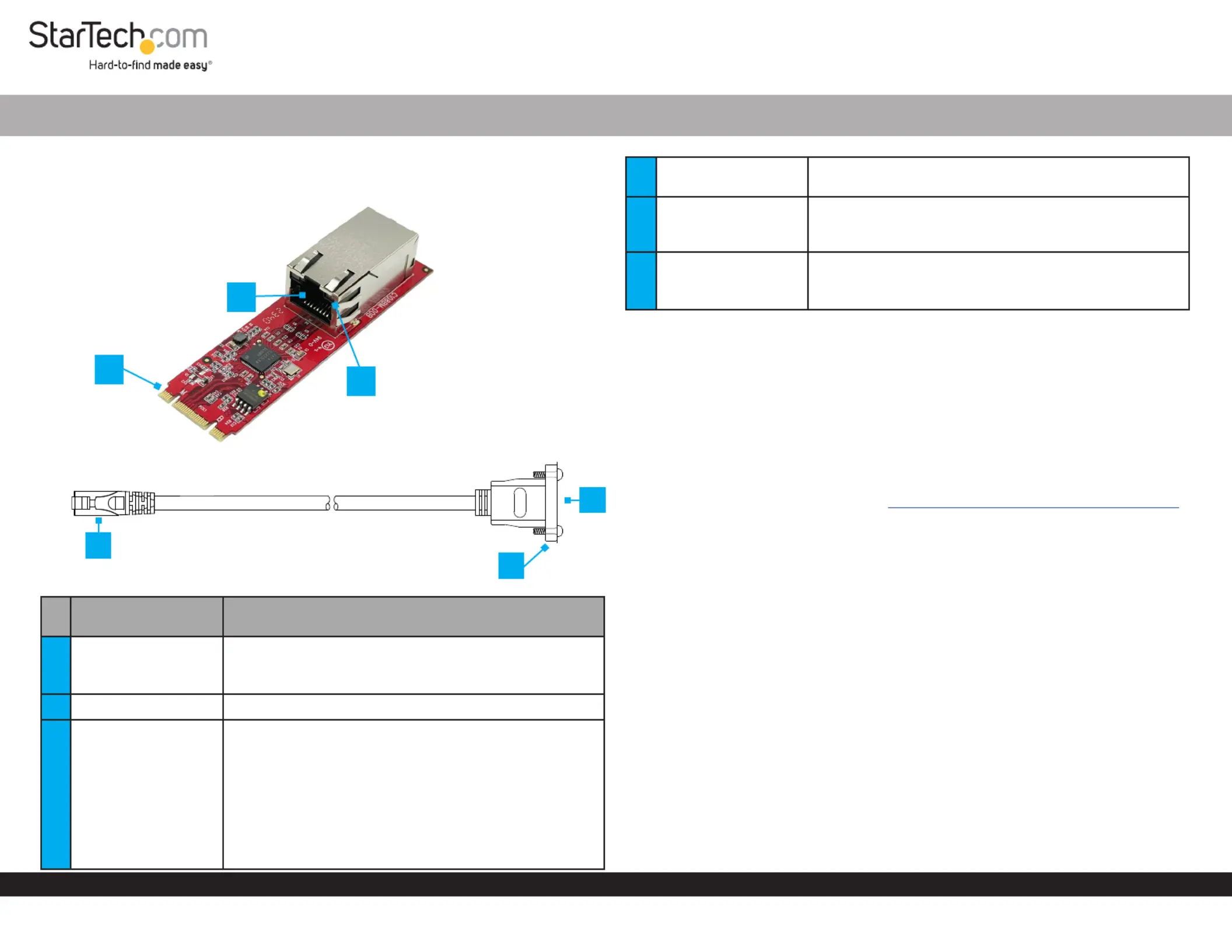

Product Diagram (MR12GI-NETWORK-CARD)
M.2 Network Card
CAT6 Cable Adapter
Port/LED/Connector Function
1M.2 Connector
• Insert the into a M.2 Network Card M.2 PCI Express
Slot Host Computer on the
• Supports or B Key M Key Slots
2Ethernet Port • Connect the CAT6 Cable Adapter
3LED Indicators
• Right LED Indicator Link Speed is
• Solid Green: 2.5 Gbps
• Solid Amber: 1 Gbps
• O: 100 or 10 Mbps
• Left LED Indicator Link Status is
• Solid Green: Active link
• Flashing Green: Activity
M.2 2.5GBase-T Ethernet Network Card - PCIe 2.0
4RJ45 Connector
• Insert into the on the Ethernet Port M.2 Network
Card
5Bracket Mount
• Screw-in design for securing the CAT6 Cable Adapter
onto the or Full Prole Low Prole Bracket
(not pictured)
6Ethernet Port
• Connect a to the Network Cable CAT6 Cable
Adapter
• Supports 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
Package Contents
• M.2 Network Card x 1
• CAT6 Cable Adapter x 1
• Full Prole Bracket x 1
• Low Prole Bracket x 1
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit www.startech.com/MR12GI-NETWORK-CARD
• Host computer with an available B or M key M.2 PCI Express slot
• Phillips head screwdriver
Installation
Install the M.2 PCI Express Card
WARNING!
Static Electricity can severely damage Expansion Cards. Ensure that you are
adequately Grounded before you open your Host Computer Case or touch the
Expansion Card. You should wear an Anti-Static Strap or use an Anti-Static Mat
when installing any Host Computer component. If an Anti-Static Strap isn’t available,
discharge any built-up static electricity by touching a large Grounded Metal Surface
for several seconds. Only handle the Expansion Card by its edges and don’t touch the
gold connectors.
1. Turn o the and any that are connected to it Host Computer Peripheral Devices
(e.g. printers, external hard drives, etc.).
2. Unplug the from the .Power Cable Host Computer
3. Disconnect any that are connected to the .Peripheral Devices Host Computer
3
1
2
4
6
*Product may vary from image
5
Probleemoplossing StarTech.com MR12GI-NETWORK-CARD
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Rood |
| Gewicht: | 15 g |
| Breedte: | 80 mm |
| Diepte: | 22 mm |
| Hoogte: | 15 mm |
| Gewicht verpakking: | 170 g |
| Breedte verpakking: | 142 mm |
| Diepte verpakking: | 170 mm |
| Hoogte verpakking: | 30 mm |
| LED-indicatoren: | Ja |
| Connectiviteitstechnologie: | Bedraad |
| Ethernet LAN: | Ja |
| Snelstartgids: | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten: | 1 |
| Interface: | Ethernet |
| Duurzaamheidscertificaten: | Amerikaanse Federale wet inzake handelsovereenkomsten (TAA) |
| Ethernet LAN, data-overdrachtsnelheden: | 10,100,1000,2500 Mbit/s |
| Bekabelingstechnologie: | NBase-T |
| Netwerkstandaard: | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Intern: | Ja |
| Naleving van duurzaamheid: | Ja |
| Ethernet interface type: | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Hostinterface: | M.2 |
| Maximale overdrachtssnelheid van gegevens: | 2500 Mbit/s |
| Montagebeugels meegeleverd: | Ja |
| Jumbo Frames ondersteuning: | Ja |
| Chipset: | Intel I225-V |
| Component voor: | Pc/server |
| (Buitenste) hoofdverpakking hoogte: | 310 mm |
| (Buitenste) hoofdverpakking breedte: | 500 mm |
| (Buitenste) hoofdverpakking lengte: | 380 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 60 stuk(s) |
| Wake-on-LAN: | Ja |
| Jumbo frames: | 9000 |
| PCI versie: | 2.0 |
